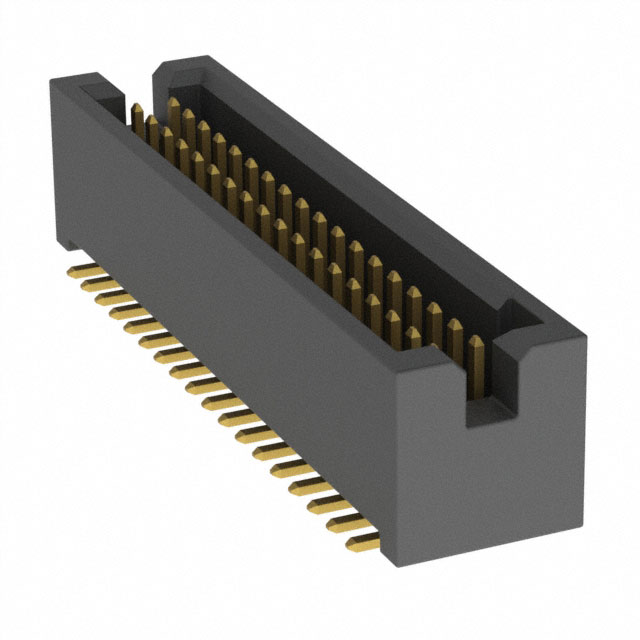

M50-4901845

Description：CONN HEADER SMD 36POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:24909f2eda33 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4901845 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 36POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4901845

Description：CONN HEADER SMD 36POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：36
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.224" (5.69mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4901845

M50-4901845

Headers, Male Pins Overview

The Harwin M50-4901845 is a surface-mount shrouded header from the Archer M50 series, designed for board-to-board or wire-to-board connections. It features a 1.27 mm pitch and a dual-in-line configuration with 18 positions (9+9) across two rows. The connector utilizes gold-plated brass contacts rated for 1 A current and 300 V voltage. Operating within a temperature range of -40°C to +105°C, it employs a straight solder termination style suitable for automated SMD assembly processes.

Headers, Male Pins Feature Summary

Shrouded housing design provides four-wall coverage to ensure precise pin alignment during mating
Gold-plated contact surfaces enhance conductivity and corrosion resistance for reliable signal transmission
Surface-mount technology enables secure attachment to printed circuit boards via solder termination

Headers, Male Pins Applications

High-density electronic module interconnections
Industrial control system board assemblies
Telecommunications equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the specific position count and housing color against the datasheet before ordering. Confirm that the selected variant matches the required surface-mount footprint and soldering profile. Ensure compatibility with mating sockets within the same Archer M50 series family to maintain mechanical integrity and electrical performance standards.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-reliability connection is required for dense PCB layouts. The 1.27 mm pitch allows for compact designs while maintaining adequate spacing. Consider the shrouded feature if misalignment prevention is critical. Evaluate thermal requirements against the specified operating temperature range for the intended application environment.

Headers, Male Pins Part Context

This part belongs to the Archer M50 series, a line of connectors known for their robust construction and suitability for demanding environments. The series offers various configurations including headers, sockets, and IDC connectors, all sharing a consistent 1.27 mm pitch architecture to simplify supply chain management and design standardization across different product lines.
