M50-4903245

Headers, Male Pins Overview

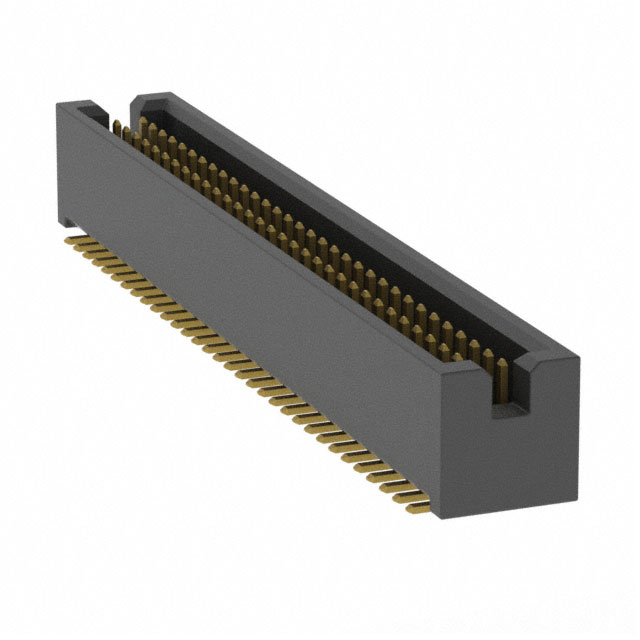

The Harwin M50-4903245 is a surface-mount board-to-board connector from the ARCHER series. It features a dual in-line configuration with 64 positions arranged in two rows. The component utilizes a 1.27 mm (0.05 inch) pitch and includes shrouded housing for pin protection. Contacts are gold-plated brass pins rated for 1 A current at 300 V. Designed for SMT assembly, it operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Shrouded design provides physical protection for male pins during mating
• Gold-plated contacts ensure reliable electrical performance
• Dual row layout supports high-density interconnect applications

Headers, Male Pins Applications

• High-density board-to-board connections
• Industrial control systems requiring robust SMT headers
• Consumer electronics with space-constrained layouts

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact contact count and housing configuration. Ensure compatibility with automated pick-and-place equipment specifications. Confirm RoHS compliance status through the manufacturer's latest datasheet before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 64-position vertical header is required for SMT processes. The 1.27 mm pitch suits dense PCB layouts. Verify that the mating socket matches the ARCHER series specifications. Consider thermal management requirements given the 105°C maximum operating limit.

Headers, Male Pins Part Context

This part belongs to the Harwin ARCHER M50 family of connectors. The series is characterized by its compact form factor and reliability in harsh environments. Similar parts in the lineup vary primarily by position count and orientation while maintaining consistent pitch and material standards.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Cross-referencing requires matching pitch, row count, and shrouding type.
