M50-4904045

Headers, Male Pins Overview

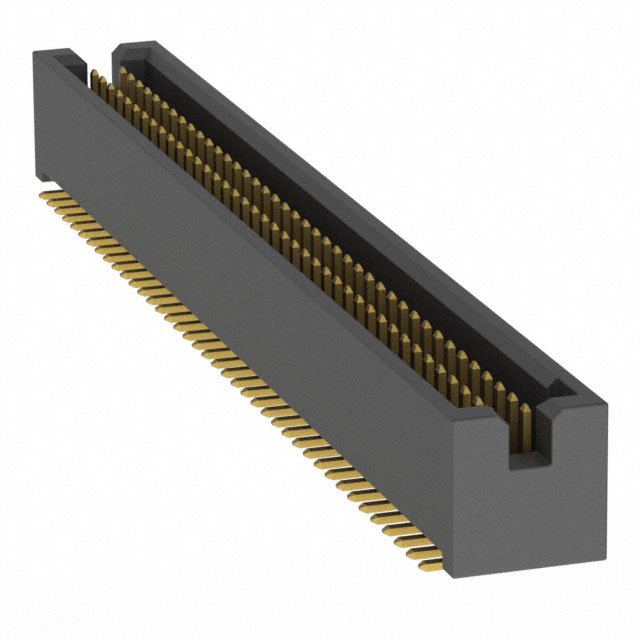

The M50-4904045 is a surface-mount shrouded header from the Harwin ARCHER series. It features a dual in-line configuration with 80 positions arranged in two rows. The connector utilizes a 1.27 mm pitch and includes male pin contacts with gold plating for reliable signal transmission. Designed for vertical mounting, it employs a push-pull fastening mechanism to secure mating connections. The component is rated for operation within a temperature range of -40°C to +105°C and supports a current rating of 1 A per contact.

Headers, Male Pins Feature Summary

• Vertical surface-mount design with integrated shrouding for precise alignment
• Push-pull fastening system ensures secure mechanical retention during mating
• Gold-plated male pin contacts provide durable electrical connectivity
• Dual in-line layout accommodates high-density circuit board interconnections

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Wire-to-board assembly requiring secure retention
• Industrial control modules with space constraints
• Automotive electronic sub-systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count and termination style. Ensure compatibility with mating socket assemblies before procurement. Confirm RoHS compliance status through the latest technical documentation provided by Harwin. Cross-reference the part number with authorized distributors to validate authenticity and supply chain integrity.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count surface-mount solution with positive locking is required. The 1.27 mm pitch allows for compact layouts while maintaining adequate spacing. Consider the push-pull feature if vibration resistance is critical. Verify that the PCB footprint matches the specified dimensions for the 80-position variant to ensure proper solder joint formation and mechanical stability.

Headers, Male Pins Part Context

This part belongs to the ARCHER M50 series, designed for demanding applications requiring robust connectivity. The series emphasizes secure mating through its unique fastening mechanism. The M50-4904045 specifically addresses needs for dense, reliable connections in confined spaces. It complements other headers in the family by offering a specialized high-pin-count option with enhanced retention capabilities.

Headers, Male Pins Replacement Considerations

M50-4903045

Headers, Male Pins FAQ

What type of fastening mechanism does the M50-4904045 use?

It utilizes a push-pull fastening mechanism to secure the connection between the header and the mating socket.

Is the M50-4904045 available in a right-angle configuration?

No, the M50-4904045 is designed as a vertical straight header for surface-mount installation.
