M52-5000545

Headers, Receptacles, Female Sockets Overview

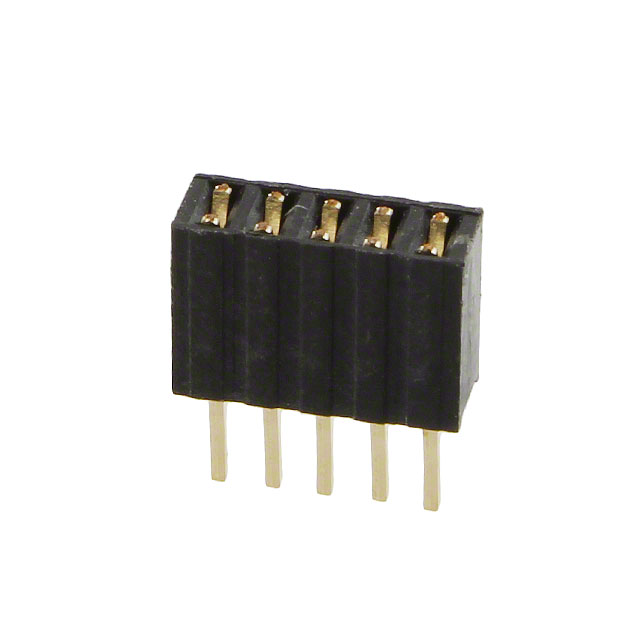

The M52-5000545 is a single-row receptacle connector from the Harwin Archer M52 series. It features 5 positions with a 1.27mm (0.050 inch) pitch. Designed for through-hole mounting, it utilizes gold-plated phosphor bronze contacts and a black polyamide insulation body rated UL94 V-0. The connector supports a voltage rating of 500V and operates within a temperature range of -40°C to +105°C. It employs a push-pull locking mechanism and offers mating stack heights of 7.1mm or 8.37mm.

Headers, Receptacles, Female Sockets Feature Summary

• Push-pull locking system ensures secure board-to-board connections
• Gold-plated contacts provide reliable signal transmission
• High-temperature resistant polyamide insulation body

Headers, Receptacles, Female Sockets Applications

• Medical equipment interconnects
• Telecommunications hardware
• General industrial electronics

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and row configuration against project requirements before ordering. Confirm that the through-hole mounting style aligns with the PCB fabrication capabilities. Ensure the operating temperature range meets the environmental specifications of the final assembly. Check for RoHS compliance status if required by regional regulations.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, single-row female connector is required for board-to-board applications. The 1.27mm pitch suits dense layouts where space is limited. Consider the push-pull retention force for vibration-prone environments. Verify compatibility with the corresponding male header from the same M52 series family.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Archer M52 series, characterized by high-density interconnect solutions. The series offers various configurations including surface mount and through-hole options. It is designed for applications requiring robust mechanical retention and reliable electrical performance in compact form factors.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other M52 series receptacles with matching pin counts and pitch. Verify that alternative parts maintain the same push-pull locking mechanism and contact plating specifications to ensure functional equivalence.
