M52-5001445

Headers, Receptacles, Female Sockets Overview

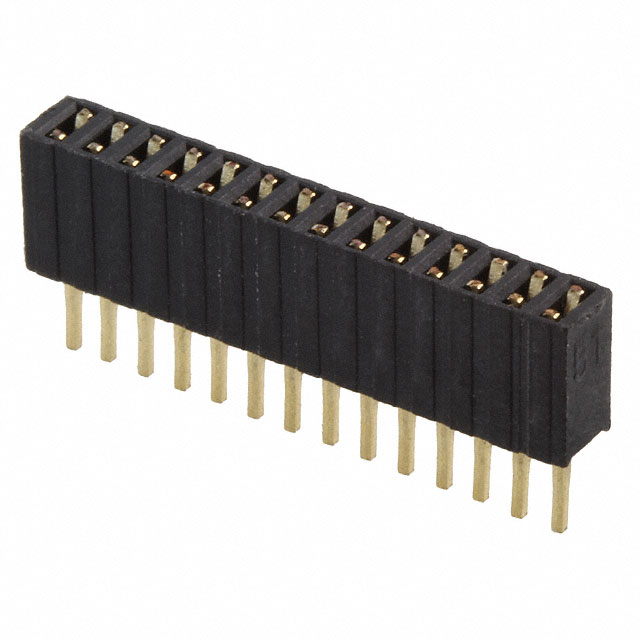

The M52-5001445 is a single-row vertical socket connector from the Harwin Archer series. It features 14 positions with a 1.27 mm (0.05 in) pitch and gold-plated contacts. Designed for through-hole mounting, this receptacle utilizes solder pin termination. The unit operates within a temperature range of -40°C to +105°C and has an insulation height of 4.6 mm.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical single-row architecture for compact board integration
• Gold contact plating ensures reliable signal transmission
• Through-hole solder pin termination for secure PCB attachment

Headers, Receptacles, Female Sockets Applications

• General electronic interconnections
• Medical device circuitry
• Telecommunications equipment

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability status and manufacturing lifecycle stage. Ensure compatibility with mating pins before procurement. Check RoHS compliance requirements against project specifications. Confirm that the 14-position configuration matches the design layout.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a single-row, 1.27 mm pitch vertical socket is required. The 4.6 mm insulation height suits applications needing specific stacking clearances. Verify that through-hole assembly processes align with the manufacturing workflow. Ensure the 14-position count meets the circuit density requirements.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Archer M52 series, designed for high-density interconnects. The series offers various position counts and mounting styles. The M52-5001445 specifically addresses needs for single-row vertical sockets with robust through-hole capabilities.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the official Harwin catalog for direct substitutes with identical electrical and mechanical parameters. Verify cross-compatibility with mating components before substitution.
