M52-5050445

Headers, Receptacles, Female Sockets Overview

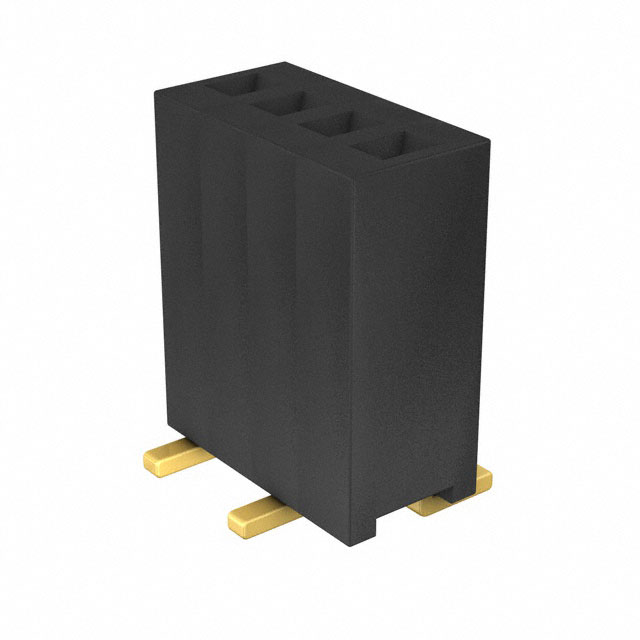

The Harwin M52-5050445 is a 4-position receptacle connector from the Archer M52 series, designed for board-to-board applications. It features a 1.27mm (0.050 inch) pitch and utilizes surface mount termination for PCB integration. The contacts are gold-plated phosphor bronze sockets with a rectangular shape, housed in black polyamide insulation rated UL94 V-0. Rated for 500V and operating between -40°C and +105°C, it ensures reliable electrical performance in demanding environments.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount receptacle design for direct PCB integration
• Gold-plated phosphor bronze contacts for corrosion resistance
• High dielectric voltage rating of 500V for robust isolation
• Polyamide housing with UL94 V-0 flammability classification

Headers, Receptacles, Female Sockets Applications

• Telecommunications equipment interconnects
• Medical device circuit boards
• General industrial control systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact pin count, row configuration, and termination style. Ensure compatibility with mating header specifications regarding current ratings and mechanical stacking height. Cross-reference RoHS compliance status with the latest manufacturer declarations prior to procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for high-density single-row board-to-board connections requiring surface mount technology. Confirm that the 1.27mm pitch aligns with the target PCB layout constraints. Validate that the 500V rating meets the system's electrical isolation requirements and that the operating temperature range covers the intended environmental conditions.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Archer M52 family, known for compact, high-reliability connectors. The M52 series supports various configurations including through-hole and surface mount options across multiple pin counts. This specific model represents a low-pin-count variant optimized for space-constrained vertical mounting applications.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating headers include models such as M52-040000S0545. Verify mechanical dimensions and contact plating thickness when sourcing substitutes to ensure proper engagement and long-term reliability.
