M52-5050545

Headers, Receptacles, Female Sockets Overview

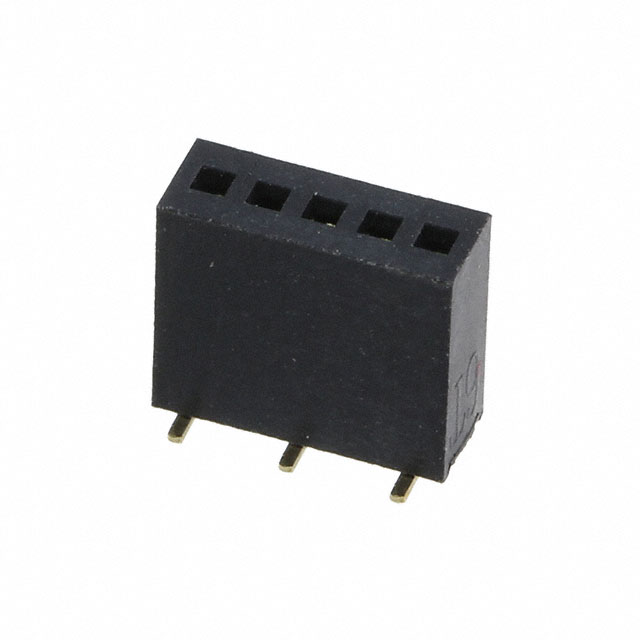

The Harwin M52-5050545 is a single-row, five-position female socket receptacle from the ARCHER M52 series. Designed for surface-mount technology (SMT), it features a 1.27 mm (0.05 inch) pin-to-pin pitch and a vertical orientation. The connector utilizes gold-plated bronze contacts to ensure reliable signal transmission and corrosion resistance. It supports a rated voltage of 500V and a current capacity of 12A. The housing is constructed from nylon, providing structural integrity within an operating temperature range of -40°C to +105°C. This board-to-board interface component is engineered for high-density PCB applications requiring robust mechanical stability and consistent electrical performance.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical surface-mount architecture designed for automated assembly processes
• Gold-plated bronze contact system ensures durable electrical connectivity
• Nylon insulation housing provides thermal stability and mechanical strength

Headers, Receptacles, Female Sockets Applications

• High-density board-to-board interconnections in compact electronic modules
• Signal routing in industrial control systems requiring reliable SMT mounting
• Consumer electronics assemblies with strict space constraints

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number M52-5050545 against official Harwin documentation to confirm current production status and compliance certifications. Ensure that the selected variant matches the required single-row configuration and vertical orientation for your design. Cross-reference technical specifications such as contact plating and material composition with the manufacturer's datasheet prior to integration. Confirm that the supplier provides authentic components with traceable origin to maintain quality standards.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, single-row vertical receptacle is required for surface-mount assembly. The 1.27 mm pitch allows for dense circuit layouts while maintaining adequate spacing. Consider the 12A current rating and 500V voltage limit to ensure compatibility with the target circuit's power requirements. The gold-plated contacts are suitable for environments where oxidation resistance is critical. Verify that the PCB footprint aligns with the specified dimensions for proper solder joint formation.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the ARCHER M52 series, which is characterized by its use of 0.46mm square pins. The series offers both single and double row configurations, catering to diverse density needs. The M52-5050545 specifically addresses applications needing a five-position vertical interface. Its design emphasizes reliability in harsh environments, supported by the robust nylon housing and precise contact alignment inherent to the ARCHER platform.

Headers, Receptacles, Female Sockets Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Harwin's official catalog or authorized distributors for potential cross-references or updated series alternatives if this specific part becomes unavailable.
