M55-3000242R

Headers, Male Pins Overview

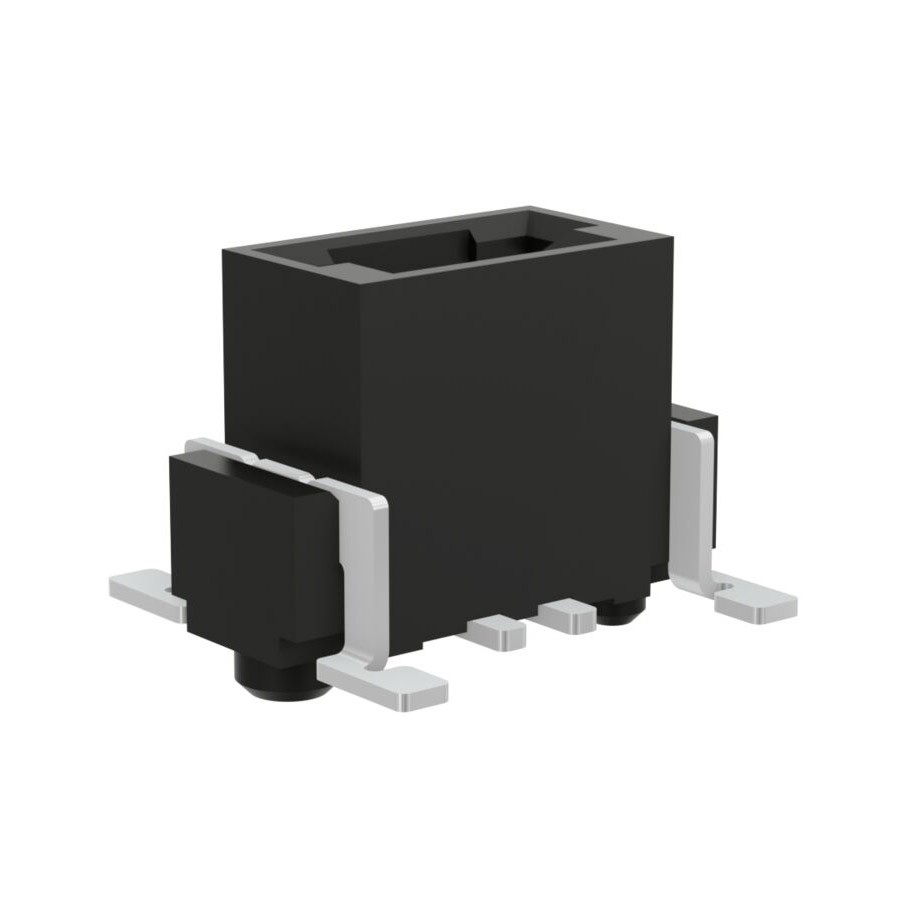

The Harwin M55-3000242R is a board-to-board and mezzanine connector from the Archer Kontrol series. It features a 1.27 mm pitch with 2 positions in a single row configuration. Designed for vertical surface mount technology (SMT) termination, this male pin header utilizes gold-plated phosphor bronze contacts housed in liquid crystal polymer (LCP). The component supports a current rating of 1.2 A and withstands voltages up to 100 VAC. Operating temperatures range from -55°C to +125°C, ensuring reliability across diverse industrial environments.

Headers, Male Pins Feature Summary

• Vertical surface mount design for compact PCB integration
• Gold-plated phosphor bronze contacts for corrosion resistance
• UL 94 V-0 rated LCP housing for thermal stability

Headers, Male Pins Applications

• High-density electronic assemblies requiring minimal footprint
• Industrial control systems with strict temperature requirements
• Compact consumer electronics utilizing SMT processes

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' indicates tape-and-reel packaging when sourcing. Confirm RoHS compliance status through official manufacturer documentation prior to procurement. Ensure compatibility with automated pick-and-place equipment specifications. Cross-reference the exact part number against distributor catalogs to avoid substitution errors with similar series components.

Headers, Male Pins Selection Notes

Select this component for applications demanding high-density interconnects with vertical orientation. The 1.27 mm pitch allows for significant pin count within limited board areas. Verify that the mating connector matches the female counterpart specifications. Consider the vertical profile constraints and ensure sufficient clearance above the PCB for assembly and operation.

Headers, Male Pins Part Context

This connector belongs to the Harwin Archer Kontrol M55 series, known for robust performance in demanding environments. The series offers various position counts and configurations to suit different density needs. As a specialized board-to-board solution, it facilitates reliable electrical connections between stacked circuit boards or adjacent modules in space-constrained designs.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
