M55-3001242R

$2.03

Description：12 POS MALE SIL VERT SMT T&R
Series：Kontrol
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:20b66d9ebc5f Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M55-3001242R is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is 12 POS MALE SIL VERT SMT T&R. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M55-3001242R

Description：12 POS MALE SIL VERT SMT T&R
Series：Kontrol
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：12
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.104" (2.64mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.207" (5.25mm)
Contact Shape：Rectangular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA9T), Nylon 9T
Features：Board Guide, Solder Retention
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1.2A per Contact
Voltage Rating：100VAC

Headers, Male Pins datasheet and documents for M55-3001242R

M55-3001242R

Headers, Male Pins Overview

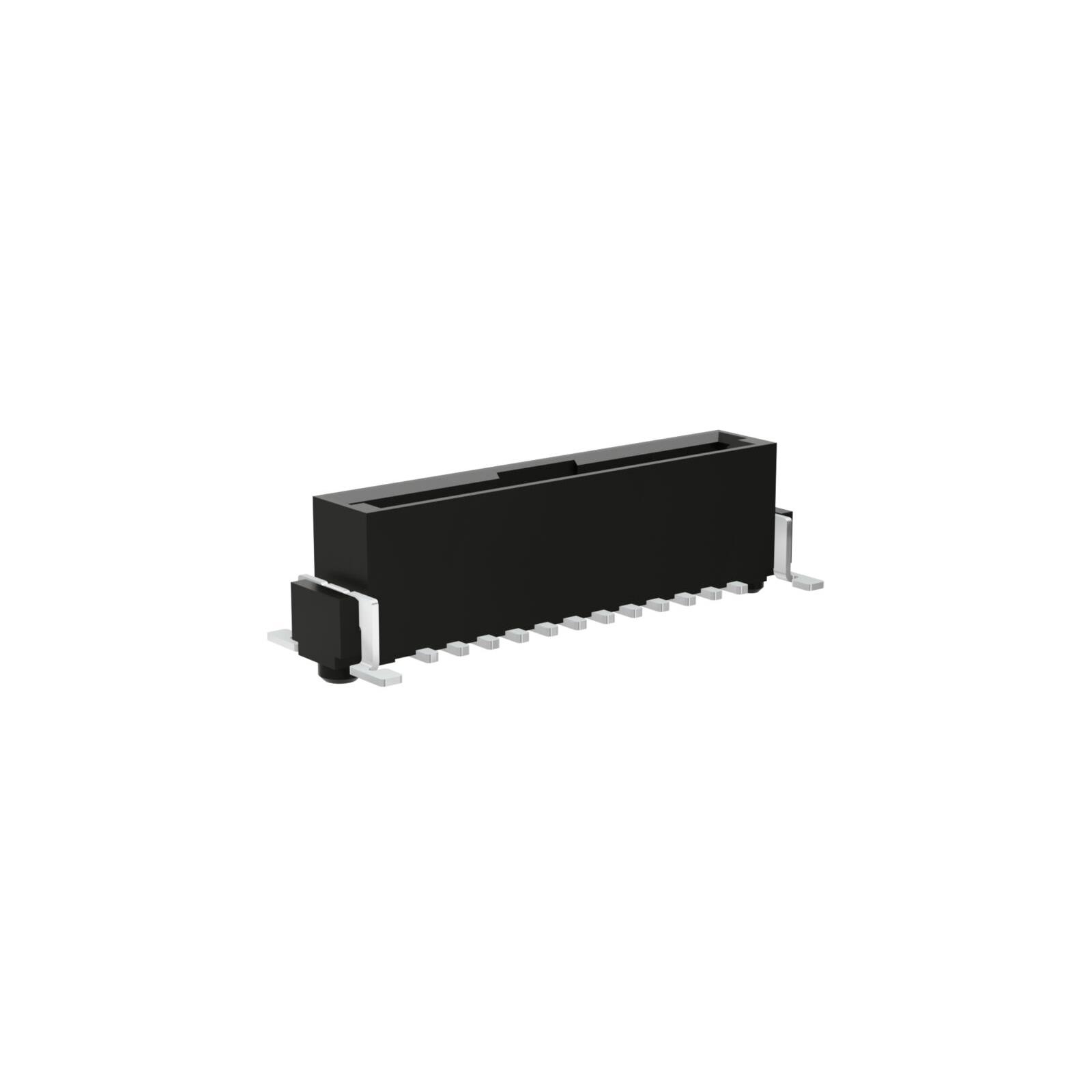

The M55-3001242R is a 12-position male pin header from the Harwin Archer Kontrol series. It features a 1.27 mm (0.05 in) pitch and utilizes Surface Mount Technology (SMT) for vertical installation on printed circuit boards. The connector is designed for single in-line configurations with gold-plated phosphor bronze contacts housed in black liquid crystal polymer (LCP). It supports a current rating of 1.2A per contact and operates within a temperature range of -55°C to 125°C, meeting UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

Vertical surface mount design for compact PCB integration
Gold-plated phosphor bronze contacts for reliable conductivity
Liquid crystal polymer housing for high thermal stability

Headers, Male Pins Applications

Handheld electronic equipment
Industrial control systems
Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' indicates tape-and-reel packaging when sourcing. Confirm that the component matches the 1.27mm pitch requirement for your target mating connectors. Ensure the vertical SMT orientation aligns with your board layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component for applications requiring robust industrial-grade connectivity with space-saving vertical mounting. The LCP material offers superior heat resistance compared to standard thermoplastics. Ensure mating cables or headers are compatible with the 12-position single-row configuration.

Headers, Male Pins Part Context

This part belongs to the M55 Archer Kontrol series, which provides high-density interconnect solutions. The series is engineered for demanding environments, offering durability and consistent performance. The M55-3001242R specifically addresses needs for small form-factor vertical connections in modern electronic devices.
