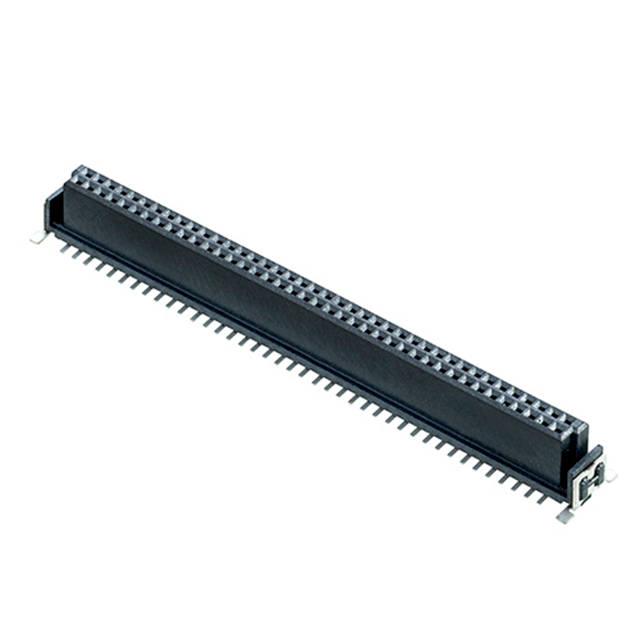

M55-6008042R

M55-6008042R is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 80POS 0.05 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M55-6008042R

• Description：CONN RCPT 80POS 0.05 GOLD SMD
• Series：Kontrol
• Mfr：Harwin Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：80
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：1.00µin (0.025µm)
• Insulation Color：Black
• Insulation Height：0.246" (6.25mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：8mm, 9.5mm, 11.1mm
• Ingress Protection：-
• Features：Board Guide, Pick and Place, Solder Retention
• Current Rating (Amps)：1.2A
• Voltage Rating：100VAC

Headers, Receptacles, Female Sockets datasheet and documents for M55-6008042R
