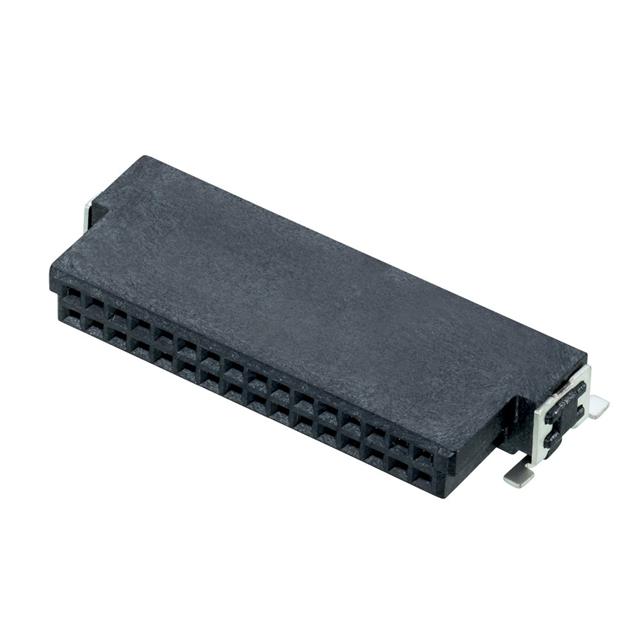

M55-6103242R

M55-6103242R is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 1.27MM SMD 32POS R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M55-6103242R

• Description：CONN RCPT 1.27MM SMD 32POS R/A
• Series：Kontrol
• Mfr：Harwin Inc.
• Package：Tape & Reel (TR)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：32
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：1.00µin (0.025µm)
• Insulation Color：Black
• Insulation Height：0.145" (3.68mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide, Solder Retention
• Current Rating (Amps)：1.2A
• Voltage Rating：100VAC
