M55-7002042R

Headers, Male Pins Overview

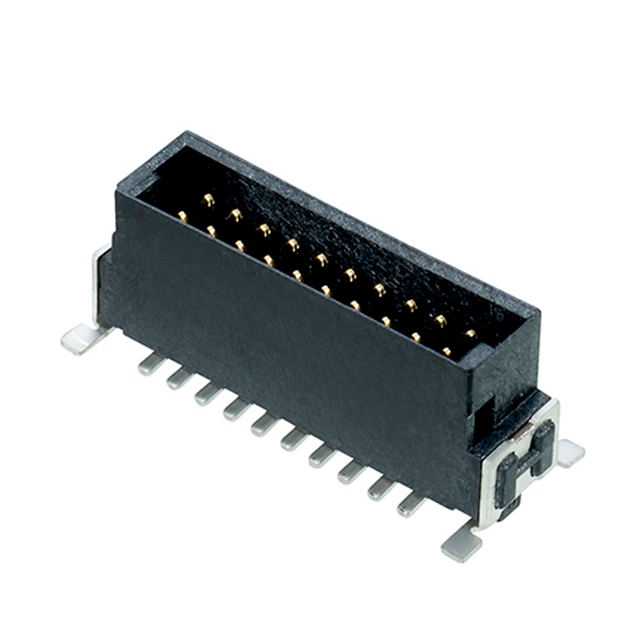

The Harwin M55-7002042R is a 20-position surface mount board-to-board header from the Archer Kontrol series. It features a 1.27 mm pitch and dual-row configuration with vertical orientation. The connector utilizes solder termination for secure PCB attachment. Electrical ratings include a current capacity of 1.2 A and voltage rating of 100 VAC. Operating temperature ranges from -55°C to +125°C. Insulation resistance is specified at 10 GOhms. The housing is constructed from UL 94 V-0 rated Liquid Crystal Polymer (LCP). Contacts are made of phosphor bronze with gold plating.

Headers, Male Pins Feature Summary

• Archer Kontrol design ensures precise alignment and reliable mating through controlled mechanical tolerances.
• Surface mount technology enables automated assembly and compact footprint integration on printed circuit boards.
• Gold-plated phosphor bronze contacts provide durable conductivity and corrosion resistance for repeated connection cycles.

Headers, Male Pins Applications

• Automotive electronic control units requiring robust board stacking
• Compact industrial instrumentation modules
• Telecommunications equipment interconnects

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm pin count, row configuration, and termination style. Ensure compatibility with mating female connectors within the same Archer Kontrol family. Check RoHS compliance status and material safety data sheets for regulatory requirements in target markets. Confirm package quantity specifications match production needs.

Headers, Male Pins Selection Notes

Select this component when a 20-position, 1.27 mm pitch vertical header is required for space-constrained designs. Consider the 8.25 mm stacking height for layer clearance. Evaluate thermal performance limits against operational environment constraints. Compare against alternative Harwin models like M55-6002042R if female connectivity is needed instead.

Headers, Male Pins Part Context

This part belongs to the Harwin M55 Archer Kontrol family of high-density board-to-board connectors. The series offers various position counts and orientations to support modular electronic architectures. It complements matching female sockets and right-angle variants for complete interconnect solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include M55-7002042R variations with different pin counts or mating lengths. Cross-reference with M55-6002042R only if female polarity is acceptable. Verify mechanical dimensions and electrical ratings before substituting with non-Harwin components.

Headers, Male Pins FAQ

What is the maximum operating temperature for the M55-7002042R?

The maximum operating temperature is +125°C, with a minimum limit of -55°C.

Is the M55-7002042R compatible with other M55 series connectors?

Yes, it is designed to mate with corresponding female connectors from the Archer Kontrol M55 series sharing the 1.27 mm pitch specification.
