M55-7106842R

$3.14

Description：CONN HEADER SMD R/A 68POS 1.27MM
Series：Kontrol
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b666bb972f5a Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M55-7106842R is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD R/A 68POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M55-7106842R

Description：CONN HEADER SMD R/A 68POS 1.27MM
Series：Kontrol
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：68
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Latch Lock
Contact Length - Mating：0.157" (4.00mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.165" (4.20mm)
Contact Shape：Rectangular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Guide, Solder Retention
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1.2A
Voltage Rating：-

Headers, Male Pins datasheet and documents for M55-7106842R

M55-7106842R

Headers, Male Pins Overview

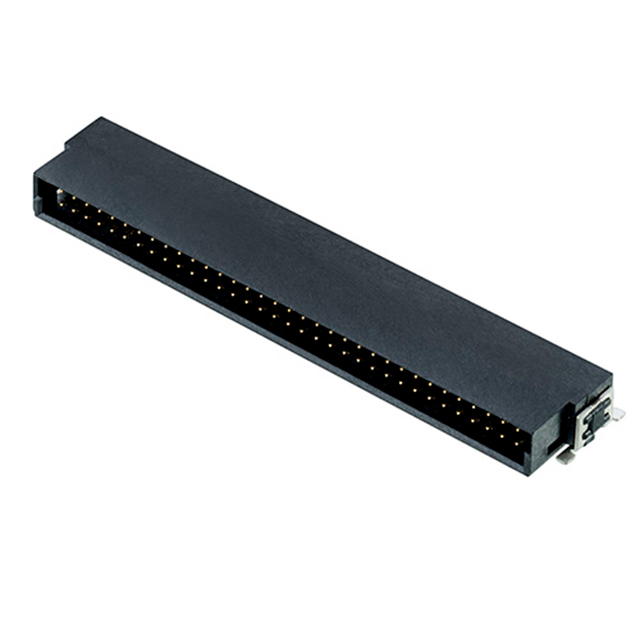

The Harwin M55-7106842R is a board-to-board and mezzanine connector from the Archer Kontrol series. It features a 68-position configuration with a 1.27 mm pitch across two rows. The component utilizes surface mount technology (SMT) with a right-angle orientation. Electrical ratings include a current capacity of 1.2 A and a voltage rating of 100 VAC. The operating temperature range spans from -55°C to +125°C. Insulation resistance is specified at 10 GOhms. The housing material is Liquid Crystal Polymer (LCP) with UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

Archer Kontrol design provides precise mating alignment for reliable signal transmission.
Surface mount construction enables automated assembly processes.
Right-angle profile facilitates compact circuit board stacking.

Headers, Male Pins Applications

High-density electronic assemblies requiring vertical interconnects.
Industrial control systems utilizing rigid board connections.
Telecommunications equipment infrastructure.

Headers, Male Pins Procurement Notes

Verify that the specific suffix matches the required termination style and contact plating thickness. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure storage conditions maintain integrity of the gold-plated phosphor bronze contacts against environmental degradation during handling.

Headers, Male Pins Selection Notes

Select this model when a right-angle SMT header is required for high-density applications. The 1.27 mm pitch supports significant I/O counts within limited footprint constraints. Verify compatibility with corresponding female housings or mating connectors in the same series to ensure mechanical fit and electrical continuity.

Headers, Male Pins Part Context

This component belongs to the Harwin M55 Archer Kontrol family, designed for robust board-to-board connectivity. The series emphasizes precision engineering for demanding environments. The M55-7106842R specifically addresses needs for horizontal surface-mount configurations with dual-row layouts.
