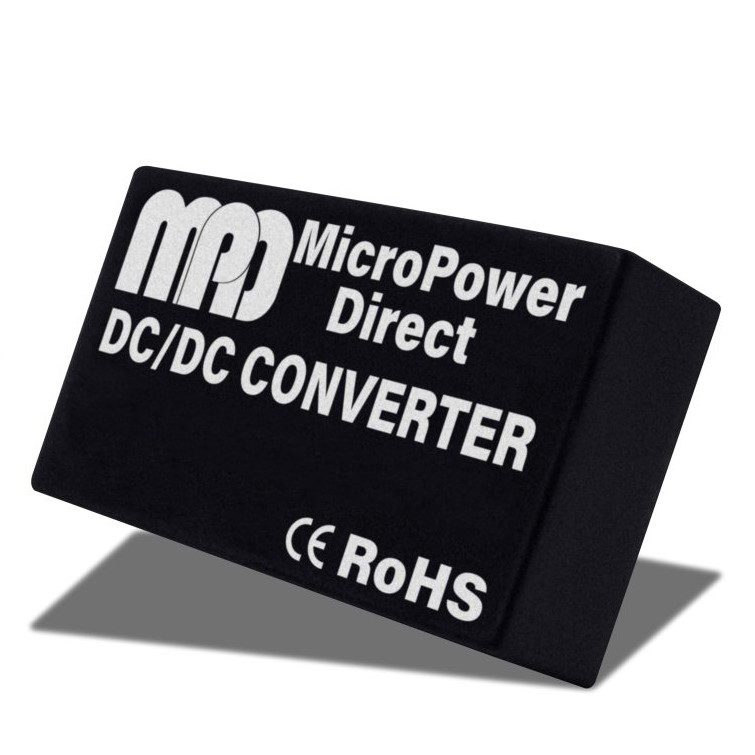

MA624S-05BRUI

MA624S-05BRUI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC,6W,24V IN,5V OUT,3KV,. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MA624S-05BRUI

• Description：DC/DC,6W,24V IN,5V OUT,3KV,
• Series：MA600BRUI
• Mfr：MicroPower Direct
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.2A
• Power (Watts)：6 W
• Voltage - Isolation：3 kV
• Applications：Industrial, ITE (Commercial)
• Features：Proportional Output, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：-
• Size / Dimension：1.25" L x 0.79" W x 0.50" H (31.8mm x 20.1mm x 12.7mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CE
• Standard Number：-
• Grade：-
• Qualification：-
