MBR12035CT

Diode Arrays Overview

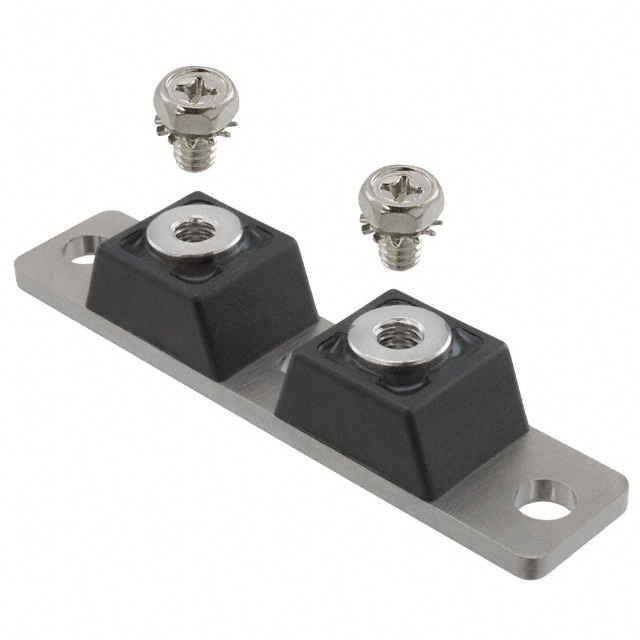

The GeneSiC Semiconductor MBR12035CT is a silicon power Schottky rectifier module rated for a repetitive peak reverse voltage of 35 V and an average forward current of 120 A per package. It features a twin tower package design with electrically isolated base plates, providing a thermal resistance of 0.80 °C/W junction-to-case per leg. The device supports a maximum forward surge current of 800 A and operates within a temperature range of -55 °C to 150 °C.

Diode Arrays Feature Summary

• High surge capability designed for robust power applications
• Twin tower package configuration with electrically isolated base plates
• Not ESD sensitive during handling and installation

Diode Arrays Applications

• Power supply circuits requiring high efficiency rectification
• DC-DC converter modules in industrial equipment
• Freewheeling diodes in motor drive systems

Diode Arrays Procurement Notes

Verify the specific part number suffix against official datasheets to confirm terminal configurations, as variations may exist between standard and reversed lead options. Ensure compatibility with mounting hardware requirements for the twin tower package style before procurement.

Diode Arrays Selection Notes

Select this component for applications demanding low forward voltage drop and high thermal stability. The 35 V rating suits low-voltage high-current systems. Evaluate thermal management solutions based on the 0.80 °C/W junction-to-case resistance to maintain safe operating temperatures under load.

Diode Arrays Part Context

This component belongs to the MBR120 series of silicon power Schottky diodes manufactured by GeneSiC Semiconductor. The series includes variants ranging from 20 V to 100 V reverse voltage ratings, all sharing the same 120 A current capacity and twin tower packaging architecture for standardized integration.

Diode Arrays Replacement Considerations

Cross-reference with MBR12030CTR or MBR12040CTR for similar electrical characteristics. Verify that substitute parts match the 120 A current rating and twin tower package dimensions to ensure mechanical fit and thermal performance equivalence.
