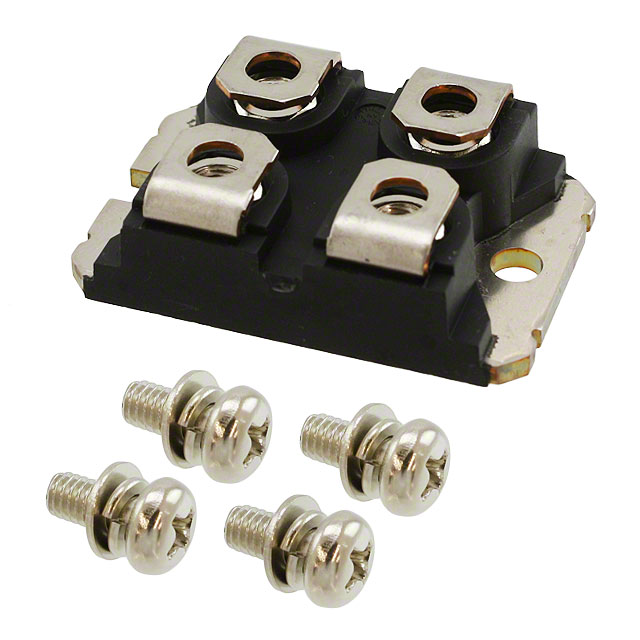

MBR40045CTS

$56.58

Description：DIODE MOD SCHOTT 45V 400A SOT227
Series：-

SKU:62acb6ac683d Category: Diode Arrays Brand: GeneSiC Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MBR40045CTS is listed in the Diode Arrays range at ChipApex. The manufacturer field lists GeneSiC Semiconductor. Its product description is DIODE MOD SCHOTT 45V 400A SOT227. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for MBR40045CTS

Description：DIODE MOD SCHOTT 45V 400A SOT227
Series：-
Mfr：GeneSiC Semiconductor
Package：Bulk
Diode Configuration：2 Independent
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：45 V
Current - Average Rectified (Io) (per Diode)：400A (DC)
Voltage - Forward (Vf) (Max) @ If：1.2 V @ 200 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：5 µA @ 36 V
Operating Temperature - Junction：-40°C ~ 175°C
Mounting Type：Screw Mount
Package / Case：SOT-227-4
Supplier Device Package：SOT-227
Grade：-
Qualification：-

Diode Arrays datasheet and documents for MBR40045CTS

MBR40045CTS

Diode Arrays Overview

The MBR40045CTS is a silicon power Schottky diode module manufactured by GeneSiC Semiconductor. It features a Twin Tower package with screw mount installation. The device supports an average forward current of 400 A per leg and a repetitive peak reverse voltage of 45 V. Maximum forward voltage is 0.70 V at Tj = 25 °C, rising to 0.84 V at Tj = 150 °C. Thermal resistance (junction-case) is 0.35 °C/W per leg. Operating temperature range spans -55 °C to +150 °C.

Diode Arrays Feature Summary

High surge capability for robust operation under transient conditions
Twin Tower package design for efficient thermal management
Not ESD sensitive for simplified handling

Diode Arrays Applications

Low voltage high frequency inverters
Free wheeling applications
Polarity protection circuits

Diode Arrays Procurement Notes

Verify the specific suffix 'S' against official documentation to confirm terminal configuration or lead orientation variations. Confirm RoHS compliance status through the manufacturer datasheet before procurement. Ensure mounting torque specifications are met during installation to maintain thermal performance and mechanical integrity.

Diode Arrays Selection Notes

Select this component for high-current low-voltage applications requiring fast recovery characteristics. Evaluate thermal resistance requirements based on ambient conditions and heatsinking capabilities. Compare forward voltage drop specifications against system efficiency targets to determine suitability for specific power conversion topologies.

Diode Arrays Part Context

This module belongs to the MBR400 series of silicon power Schottky diodes from GeneSiC Semiconductor. The series includes variants with reverse voltages ranging from 45 V to 100 V. All models share the same 400 A average forward current rating and Twin Tower packaging style.
