MC74HC04ADTR2G-Q

Inverter Gates Overview

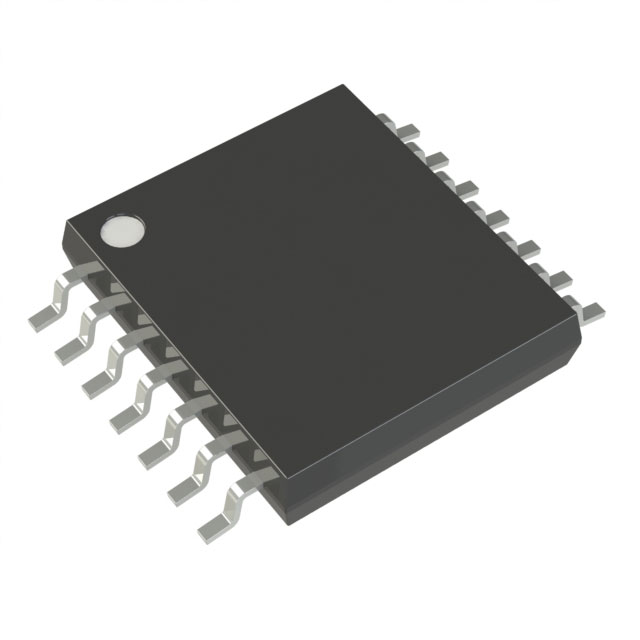

The MC74HC04ADTR2G-Q is a high-performance silicon-gate CMOS hex inverter manufactured by onsemi. It contains six independent inverters housed in a TSSOP-14 package. The device operates within a supply voltage range of 2.0 V to 6.0 V and supports an operating temperature range from -55°C to +125°C. Propagation delay varies between 13 ns and 75 ns depending on voltage and temperature. It features low input current, high noise immunity, and output drive capability for 10 LSTTL loads.

Inverter Gates Feature Summary

• AEC-Q100 qualified with PPAP capability for automotive applications
• Outputs directly interface to CMOS, NMOS, and TTL logic families
• Inputs compatible with Standard CMOS outputs and LSTTL outputs when pullup resistors are used

Inverter Gates Applications

• Automotive electronic systems requiring unique site and control change requirements
• General-purpose digital signal inversion
• Clock signal generation and conditioning circuits

Inverter Gates Procurement Notes

Verify the specific suffix 'Q' indicates AEC-Q100 qualification and PPAP capability as defined by onsemi. Confirm the package type is TSSOP-14 (DT suffix) and that the component is lead-free and halogen-free. Ensure the ordering information matches the required shipping format, typically tape and reel.

Inverter Gates Selection Notes

Select this component when a hex inverter with wide voltage operation (2V–6V) is required for harsh environments. The HC series offers compatibility with standard CMOS outputs. Consider the HCT variant if direct TTL input compatibility without pullup resistors is necessary. Verify thermal resistance and power dissipation limits for the specific PCB layout.

Inverter Gates Part Context

This part belongs to the MC74HC04A family of hex inverters. It shares pinout compatibility with LS04 and MC14069 devices. The '-Q' suffix distinguishes it as an automotive-grade component meeting stricter manufacturing controls compared to standard commercial variants.

Inverter Gates Replacement Considerations

MC74HC04ADTR2G

Inverter Gates FAQ

What does the '-Q' suffix indicate for this component?

The '-Q' suffix denotes that the device is AEC-Q100 qualified and PPAP capable, intended for automotive and other applications requiring unique site and control change requirements.

Is the MC74HC04ADTR2G-Q compatible with TTL inputs?

The HC series inputs are compatible with Standard CMOS outputs. With pullup resistors, they are compatible with LSTTL outputs. For direct TTL compatibility without resistors, the HCT series should be considered.
