MCIMX6Y2CVM05ABR

Microprocessors Overview

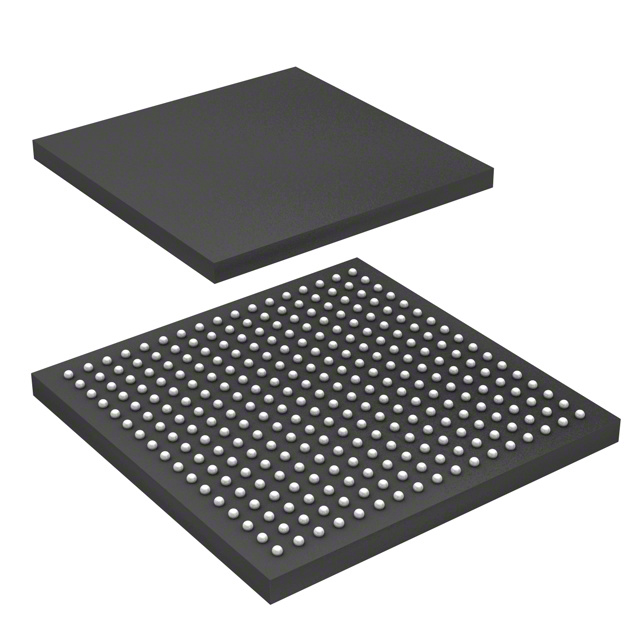

The MCIMX6Y2CVM05ABR is an industrial-grade microprocessor from the NXP i.MX 6ULL family, featuring a single-core ARM Cortex-A7 processor operating at 528 MHz. It utilizes a 14x14 mm MAPBGA package with a 0.8 mm pitch and supports a junction temperature range of -40°C to +105°C. The device integrates 32 KB L1 instruction and data caches, a 128 KB unified L2 cache, and 96 KB boot ROM. Key interfaces include dual Ethernet controllers, dual USB OTG with PHY, dual CAN ports, and support for LPDDR2, DDR3, and DDR3L memory types.

Microprocessors Feature Summary

• Integrated power management module reduces external supply complexity
• Hardware-accelerated security features including A-HAB and TrustZone
• Multimedia capabilities enhanced by NEON MPE co-processor and PXP
• Flexible interface connectivity supporting multiple display and camera options

Microprocessors Applications

• Industrial products
• Human Machine Interfaces (HMI)
• IoT Gateways
• Access control panels

Microprocessors Procurement Notes

Verify the specific suffix 'R' against official documentation to confirm tape-and-reel packaging status, as standard datasheets may list tray packaging for this part number. Ensure compatibility with the IMX6ULLIEC industrial temperature grade specifications during component sourcing.

Microprocessors Selection Notes

Select this model for applications requiring industrial temperature stability (-40°C to +105°C) and basic security features. It is suitable for designs needing dual Ethernet and dual CAN interfaces without the higher performance demands of the 792 MHz variants.

Microprocessors Part Context

This component belongs to the i.MX 6ULL series, designed for cost-effective, power-efficient multimedia processing. It targets connected devices and IoT gateways, offering a balance of processing power and integrated peripherals within a compact footprint.

Microprocessors Replacement Considerations

MCIMX6Y2CVM05AB

Microprocessors FAQ

What is the maximum operating frequency for this specific part number?

The MCIMX6Y2CVM05ABR operates at a maximum frequency of 528 MHz.

Does this processor include hardware security acceleration?

Yes, it includes Advanced High Assurance Boot (A-HAB), Arm TrustZone, Central Security Unit (CSU), and Secure Non-Volatile Storage (SNVS).
