MCL1608V2-390-R

Fixed Inductors Overview

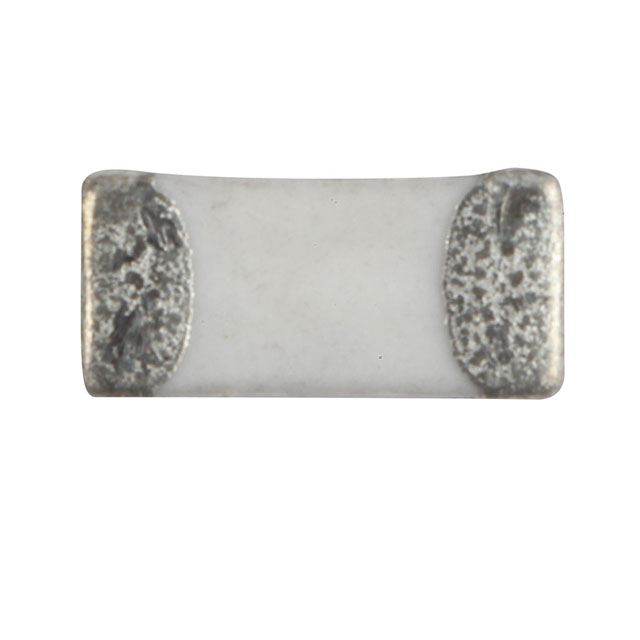

The MCL1608V2-390-R is a fixed multilayer chip inductor from Eaton Electronics, housed in a 0603 (1608 metric) surface-mount package. It features an inductance of 39 nH with a tolerance of ±5%. The component has a maximum DC resistance of 700 mΩ and supports a rated current of 300 mA. It exhibits a self-resonant frequency of 1.4 GHz and a Q factor of 8 at 100 MHz. Operating within a temperature range of -40°C to +85°C, it utilizes unshielded monolithic construction suitable for reflow and wave soldering processes.

Fixed Inductors Feature Summary

• Multilayer monolithic construction designed for high reliability in SMD applications
• Unshielded design optimized for high-frequency RF signal integrity
• Compatible with standard wave and reflow soldering manufacturing processes

Fixed Inductors Applications

• RF transceiver modules
• Wireless communications systems
• Broadband components
• Industrial connectivity interfaces

Fixed Inductors Procurement Notes

Verify the specific suffix and packaging configuration against official Eaton documentation prior to ordering. Confirm that the moisture sensitivity level and storage conditions align with your assembly line requirements. Ensure the selected variant matches the exact inductance value and current rating needed for the target circuit design to prevent performance deviations.

Fixed Inductors Selection Notes

Select this component when a compact 0603 footprint is required for RF filtering or impedance matching. Consider the 39 nH value and 1.4 GHz self-resonant frequency for high-frequency signal paths. Evaluate the 300 mA current rating against peak circuit loads. Compare thermal performance and DCR specifications against alternative inductors to ensure compatibility with space-constrained PCB layouts.

Fixed Inductors Part Context

This part belongs to the MCL series of high-reliability multilayer chip inductors manufactured by Eaton Electronics Division. The series includes variants such as MCL1005, MCL1608V1, and MCL2012V1, offering various inductance ranges. These components are engineered for robust performance in demanding electronic environments, providing consistent electrical characteristics across the specified operating temperature range.

Fixed Inductors Replacement Considerations

Direct substitutes include other Eaton MCL1608V2 series parts with identical 39 nH inductance and 0603 dimensions. Verify pinout compatibility and physical footprint alignment before integrating alternative manufacturers' components into existing designs.
