MCM-7060M-132

Common Mode Chokes Overview

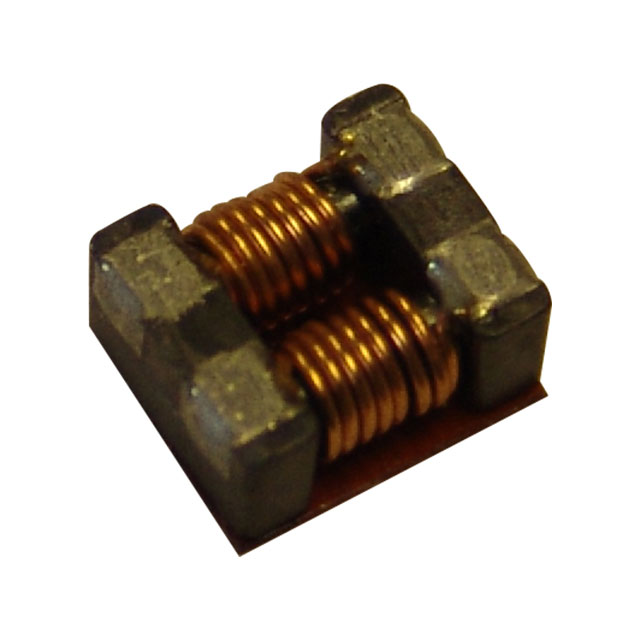

The MCM-7060M-132 is a surface-mount common mode choke manufactured by Pulse Electronics. It features an impedance of 1.3 kOhms at 100 MHz and a maximum DC resistance of 21 mOhm. The component utilizes a tape and box (TB) packaging format for efficient handling. Designed for robust performance, it supports applications requiring effective noise suppression in power conversion and voltage regulation circuits.

Common Mode Chokes Feature Summary

• Provides common mode noise filtering for differential signal lines
• Utilizes surface mount technology for automated PCB assembly
• Features low DC resistance to minimize power loss

Common Mode Chokes Applications

• Power supply input stages
• Voltage regulation modules
• Battery charger circuits

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official Pulse Electronics documentation to confirm electrical characteristics and physical dimensions. Ensure compatibility with existing PCB footprints and reflow soldering profiles. Cross-reference datasheets for impedance curves and saturation current ratings prior to integration into final designs.

Common Mode Chokes Selection Notes

Select this component when designing circuits that require high impedance at 100 MHz for EMI suppression. Consider the 21 mOhm DC resistance for efficiency calculations in low-voltage applications. Verify that the surface mount package fits within the available board space constraints.

Common Mode Chokes Part Context

This component belongs to the common mode choke category within Pulse Electronics' passive components portfolio. It serves as a critical element for electromagnetic interference mitigation in electronic systems. The product is distinct from general inductors due to its dual-winding configuration designed specifically for common mode noise rejection.
