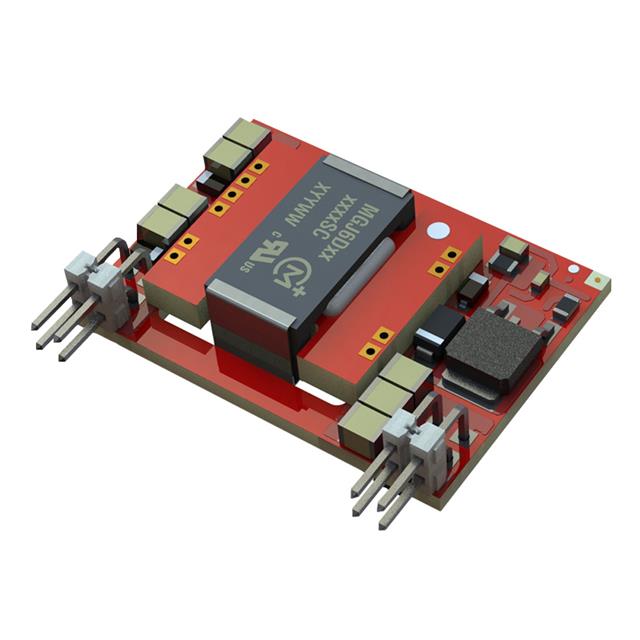

MGJ6D051510SC

MGJ6D051510SC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC DC CONVERTER 15V -5V 6W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MGJ6D051510SC

• Description：DC DC CONVERTER 15V -5V 6W
• Series：MGJ6 (6W)
• Mfr：Murata Power Solutions Inc.
• Package：Tray
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：15V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：240mA, 240mA
• Power (Watts)：6 W
• Voltage - Isolation：5.2 kV
• Applications：ITE (Commercial), Medical
• Features：SCP, UVLO
• Operating Temperature：-40°C ~ 105°C
• Efficiency：77.50%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module
• Size / Dimension：1.54" L x 0.43" W x 1.11" H (39.0mm x 11.0mm x 28.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MGJ6D051510SC
