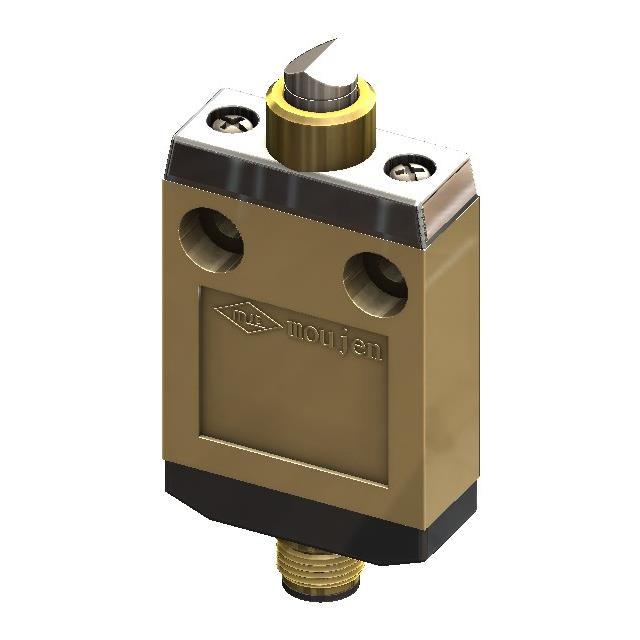

MJG--M4-4103Q-ZAC--T3

MJG–M4-4103Q-ZAC–T3 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is Seal Pos-Open Slim Heavy Switch. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MJG–M4-4103Q-ZAC–T3

• Description：Seal Pos-Open Slim Heavy Switch
• Series：M4
• Mfr：Moujen
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC), 0.4A (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Bevel Plunger
• Mounting Type：Chassis Mount
• Termination Style：Connector
• Ingress Protection：IP67F - Dust Tight, Oil Resistant, Waterproof
• Features：-
• Operating Force：1200gf
• Release Force：450gf
• Operating Position：-
• Pretravel：0.071" (1.8mm)
• Differential Travel：0.008" (0.2mm)
• Overtravel：0.118" (3.0mm)
• Operating Temperature：-20°C ~ 70°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for MJG–M4-4103Q-ZAC–T3
