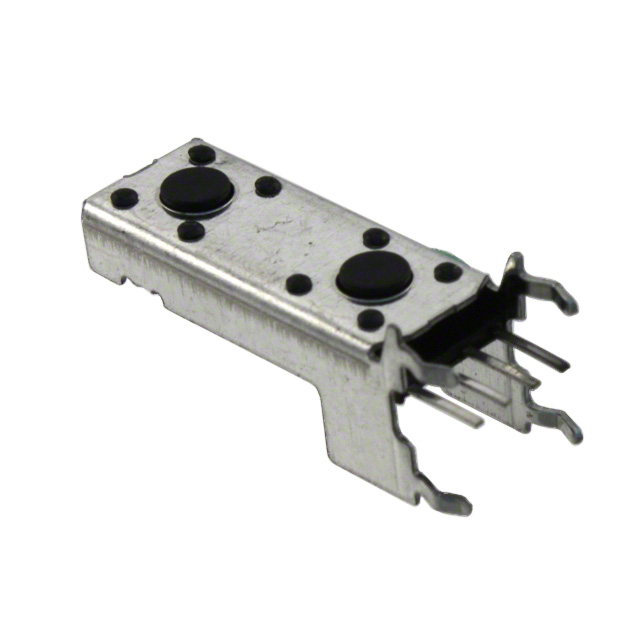

MJTP2205

MJTP2205 is listed in the Tactile Switches range at ChipApex. The manufacturer field lists APEM Inc.. Its product description is SWITCH TACT SPSTX2 0.05A 12V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for MJTP2205

• Description：SWITCH TACT SPSTX2 0.05A 12V
• Series：MJTP
• Mfr：APEM Inc.
• Package：Bulk
• Circuit：SPST x 2
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 12VDC
• Actuator Type：Dual
• Mounting Type：Through Hole, Right Angle
• Actuator Height off PCB, Vertical：-
• Actuator Length, Right Angle：3.15mm
• Actuator Orientation：Side Actuated
• Termination Style：PC Pin
• Outline：8.40mm x 10.55mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：160gf
• Ingress Protection：-
• Features：Tactile Feedback
• Operating Temperature：-20°C ~ 70°C

Tactile Switches datasheet and documents for MJTP2205
