MK LP 42 27 Z

Headers, Male Pins Overview

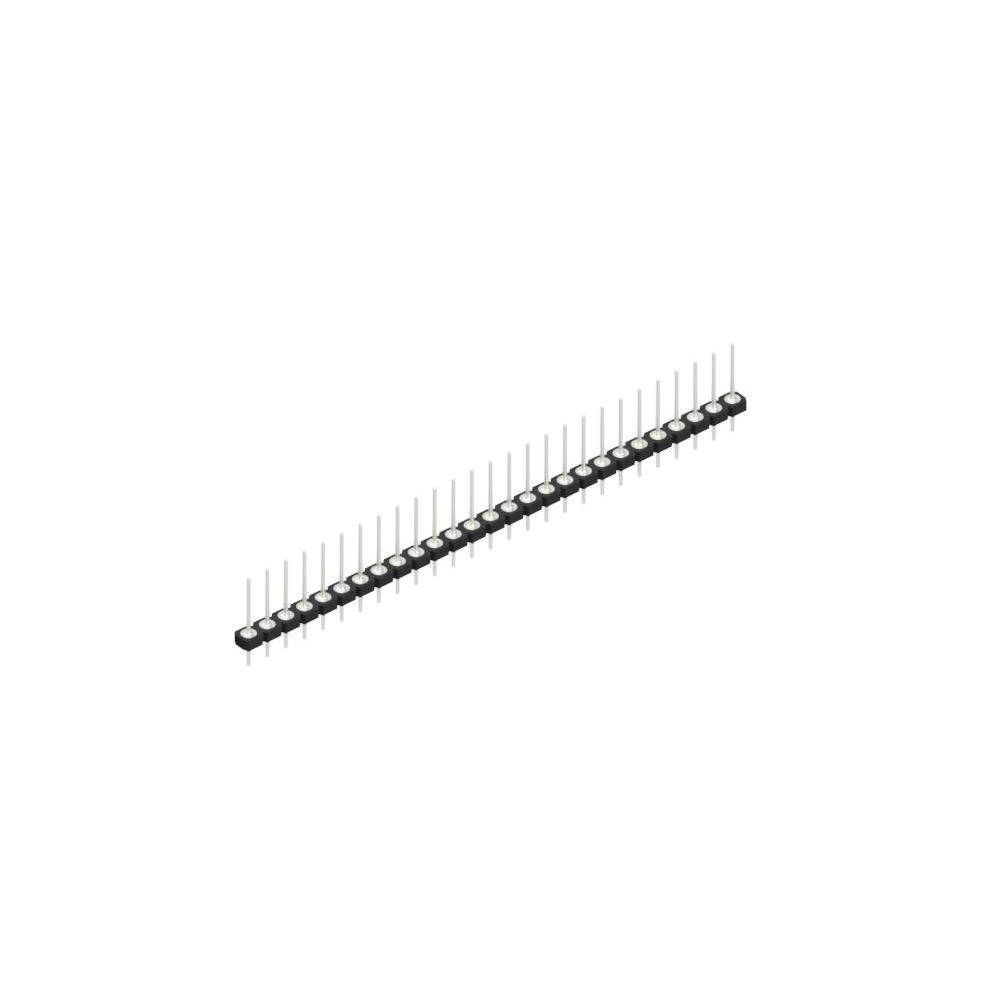

The MK LP 42 27 Z is a board connector featuring 27 contacts arranged in a single row. It utilizes a female configuration with straight installation and solder terminals. The component operates within a temperature range of -40°C to +163°C. It employs a 2.54 mm grid pitch and includes a contact spring designed for Ø 0.5 mm pins. The surface finish is tin-plated, ensuring compliance with lead-free standards.

Headers, Male Pins Feature Summary

• Low profile design measuring less than 2.7/3.1 mm above the PCB
• Integrated contact spring compatible with Ø 0.5 mm pins
• Tin-plated surface finish for reliable connectivity

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic assembly requiring low-profile headers

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and row configuration. Confirm that the tin-plated surface finish aligns with your environmental and reliability requirements. Ensure the straight solder terminal style fits your PCB layout constraints. Check compatibility with mating pins of the specified diameter.

Headers, Male Pins Selection Notes

Select this component when a low-profile female header is required for direct board mounting. The 2.54 mm pitch suits standard through-hole applications. Consider the operating temperature range and tin plating for corrosion resistance. This model is suitable for space-constrained designs where height above the PCB is critical.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik MK LP series of high-precision female headers. The series offers various contact counts and row configurations. Components are manufactured using soldering techniques with specific profile options. The manufacturer specializes in connectors and thermal management solutions.

Headers, Male Pins Replacement Considerations

Ensure replacement parts maintain the same 2.54 mm pitch and 27-contact count. Verify that the new component supports the same straight solder terminal style. Confirm compatibility with the intended mating pin diameter and low-profile height requirements.
