MLG0603P2N7BTD25

Fixed Inductors Overview

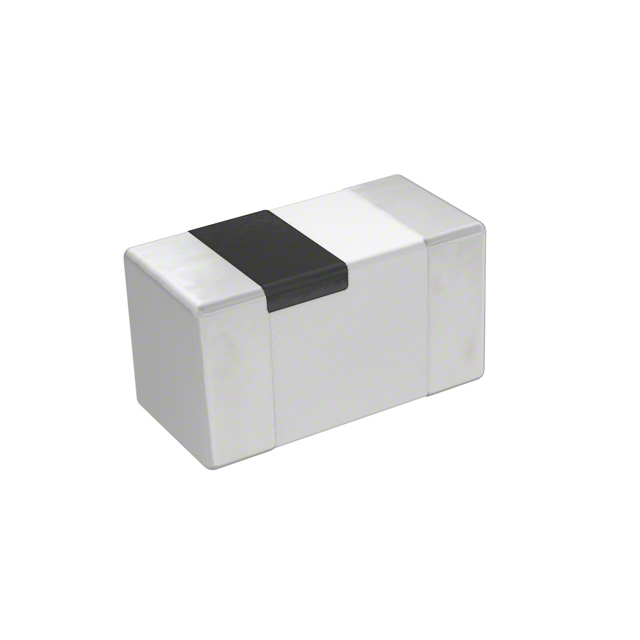

The TDK MLG0603P2N7BTD25 is a fixed multilayer ceramic inductor designed for high-frequency applications. It features an inductance of 2.7 nH with a tolerance of ±0.1 nH. The component has a maximum DC current rating of 500 mA and a maximum DC resistance of 200 mOhms. It operates within a temperature range of -55°C to +125°C and holds AEC-Q200 qualification. The self-resonant frequency is 9.4 GHz, and the Q factor is 14 at 100 MHz. The package size is 0201 (0603 metric) with dimensions of 0.6 mm x 0.3 mm x 0.33 mm.

Fixed Inductors Feature Summary

• High-Q performance optimized for RF circuits
• AEC-Q200 qualified for automotive reliability
• Unshielded multilayer ceramic construction

Fixed Inductors Applications

• Automotive mobile communication circuits
• RF matching networks
• High-frequency signal processing

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the official TDK datasheet to ensure correct tolerance and packaging specifications. Confirm that the AEC-Q200 qualification meets the required automotive grade standards for the target application. Check RoHS compliance status prior to procurement.

Fixed Inductors Selection Notes

Select this component for designs requiring low inductance values in compact 0201 packages. Ensure the operating frequency remains below the 9.4 GHz self-resonant point. Verify that the 500 mA current limit accommodates peak circuit demands without saturation.

Fixed Inductors Part Context

This part belongs to the TDK MLG-P series of multilayer chip inductors. The series is specifically engineered for high-frequency and high-reliability environments. It utilizes ceramic core materials to achieve stable electrical characteristics across wide temperature ranges.

Fixed Inductors Replacement Considerations

MLG0603P2N5BTD25: Lower inductance value (2.5 nH). MLG0603P3N2CTD25: Higher inductance value (3.2 nH). Both share similar package and qualification profiles.
