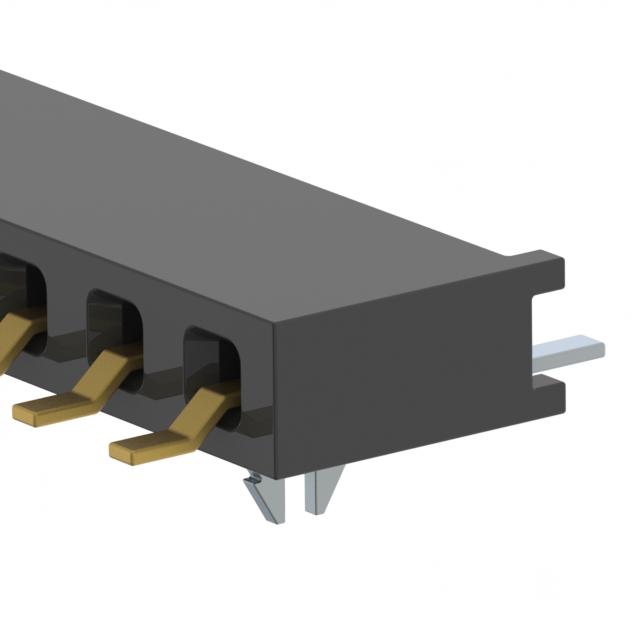

MMS-112-02-L-SH-LC

MMS-112-02-L-SH-LC is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN RCPT 12P 0.079 GOLD SMD R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for MMS-112-02-L-SH-LC

• Description：CONN RCPT 12P 0.079 GOLD SMD R/A
• Series：MMS
• Mfr：Samtec Inc.
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：12
• Number of Positions Loaded：All
• Pitch - Mating：0.079" (2.00mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Insulation Color：Black
• Insulation Height：0.085" (2.15mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Lock
• Current Rating (Amps)：3.9A per Contact
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for MMS-112-02-L-SH-LC
