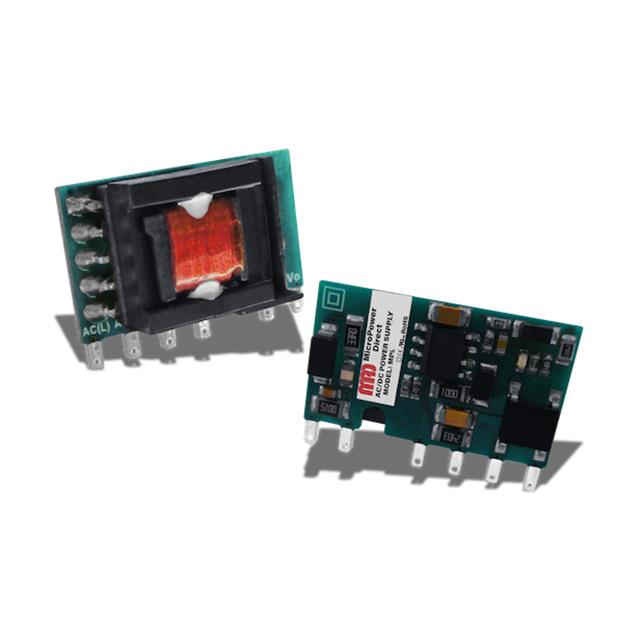

MPL-03SC-15

MPL-03SC-15 is listed in the AC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is AC/DC OPEN FRAME, 3W, 15V OUT. Review the specifications below when checking this part for your BOM.

AC DC Converters specifications for MPL-03SC-15

• Description：AC/DC OPEN FRAME, 3W, 15V OUT
• Series：MPL-03SC (3W)
• Mfr：MicroPower Direct
• Package：Box
• Type：Open Frame
• Number of Outputs：1
• Voltage - Input：85 ~ 305 VAC, 70 ~ 430 VDC
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA
• Applications：Industrial, ITE (Commercial)
• Features：Universal Input
• Operating Temperature：-40°C ~ 85°C
• Efficiency：-
• Mounting Type：Chassis Mount
• Package / Case：-
• Size / Dimension：1.04" L x 0.61" W x 0.43" H (26.3mm x 15.3mm x 10.9mm)
• Approval Agency：CE, cURus
• Standard Number：62368-1
• Power (Watts)：-

AC DC Converters datasheet and documents for MPL-03SC-15
