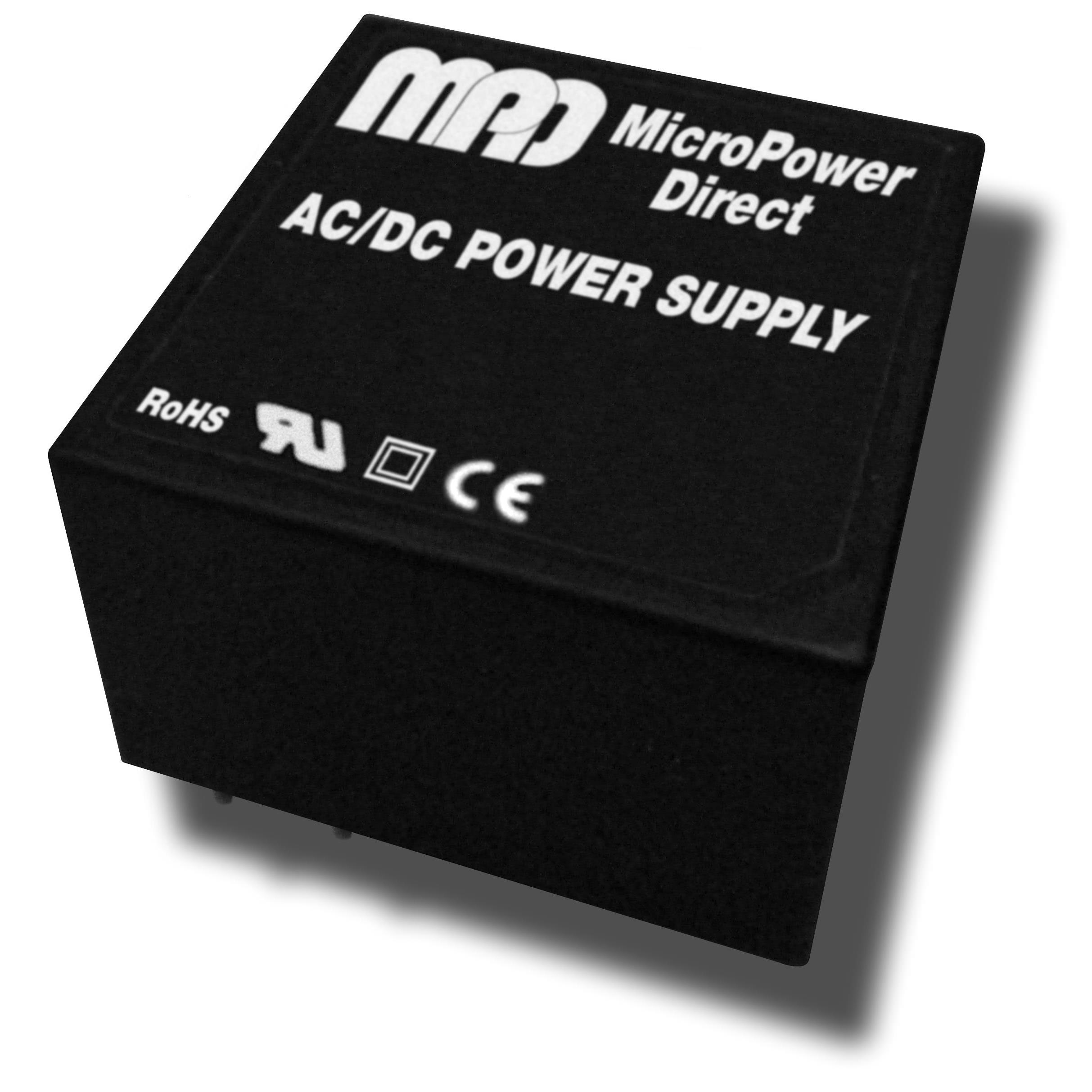

MPM-05S-12MMC

MPM-05S-12MMC is listed in the AC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is AC/DC MODULE ,5W, 12V OUT. Review the specifications below when checking this part for your BOM.

AC DC Converters specifications for MPM-05S-12MMC

• Description：AC/DC MODULE ,5W, 12V OUT
• Series：MPM-05MM
• Mfr：MicroPower Direct
• Package：Box
• Type：Enclosed
• Number of Outputs：1
• Voltage - Input：85 ~ 264 VAC, 120 ~ 370 VDC
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：416mA
• Applications：Industrial, ITE (Commercial)
• Features：-
• Operating Temperature：-25°C ~ 75°C
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：-
• Size / Dimension：1.00" L x 1.00" W x 0.64" H (25.4mm x 25.4mm x 16.2mm)
• Approval Agency：CE, UR
• Standard Number：60950; 62368
• Power (Watts)：5 W

AC DC Converters datasheet and documents for MPM-05S-12MMC
