MPRLS0001PG00001C

Pressure Sensors Transducers Overview

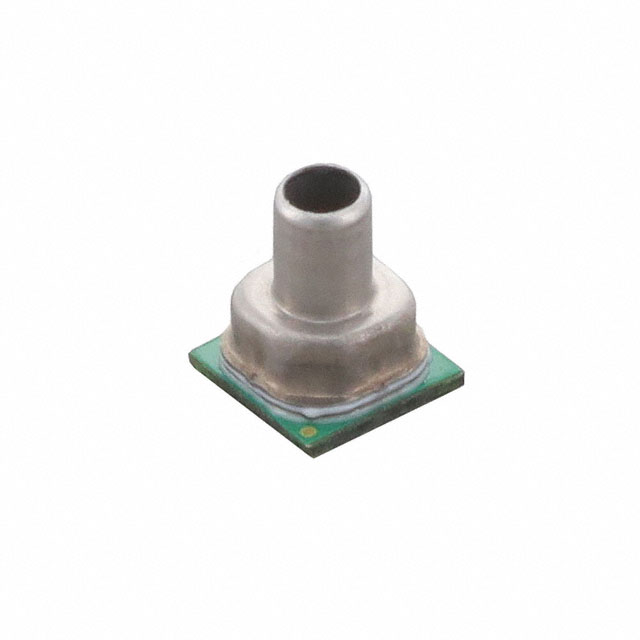

The MPRLS0001PG00001C is a Honeywell MPR series micro pressure sensor featuring a 5mm x 5mm SMD package. It provides a digital output with 24-bit resolution via SPI interface. The device measures gauge pressure within a range of 0 to 1 PSI (6.89 kPa). It operates on a supply voltage between 1.8V and 3.6V. Accuracy is specified at ±0.25%. The sensor includes onboard ASIC for temperature compensation and calibration, ensuring reliable performance across a working temperature range of -40°C to 85°C.

Pressure Sensors Transducers Feature Summary

• Integrated ASIC provides digital output with full-scale calibration and temperature compensation
• Compact 12-SMD module design suitable for board-mount applications
• SPI-compatible digital interface supports IoT connectivity requirements

Pressure Sensors Transducers Applications

• Medical devices requiring precise low-pressure monitoring
• Consumer appliances with gas or liquid medium sensing
• Industrial HVAC systems needing compact pressure feedback

Pressure Sensors Transducers Procurement Notes

Verify component status as distributors indicate discontinuation. Confirm interface compatibility and pinout alignment during integration. Ensure supply chain availability through authorized channels given potential obsolescence. Validate environmental ratings against specific operational constraints before finalizing procurement decisions.

Pressure Sensors Transducers Selection Notes

Select this model for applications demanding high accuracy in low-pressure gauge measurements. The digital SPI output simplifies system integration compared to analog alternatives. Consider the limited operating temperature range if extreme environments are involved. Verify mechanical port specifications match system tubing requirements.

Pressure Sensors Transducers Part Context

Part of the Honeywell MPR MicroPressure family, designed for miniaturized sensing needs. Utilizes piezoresistive silicon technology with integrated signal conditioning. Targets markets requiring small form factors and digital interoperability. Competes in the micro-sensor segment for medical and industrial sectors.

Pressure Sensors Transducers Replacement Considerations

MPRLS0001PG0000SA is a documented variant within the same series. Verify interface and pressure range compatibility when substituting. Check manufacturer notices regarding end-of-life status for current inventory planning.
