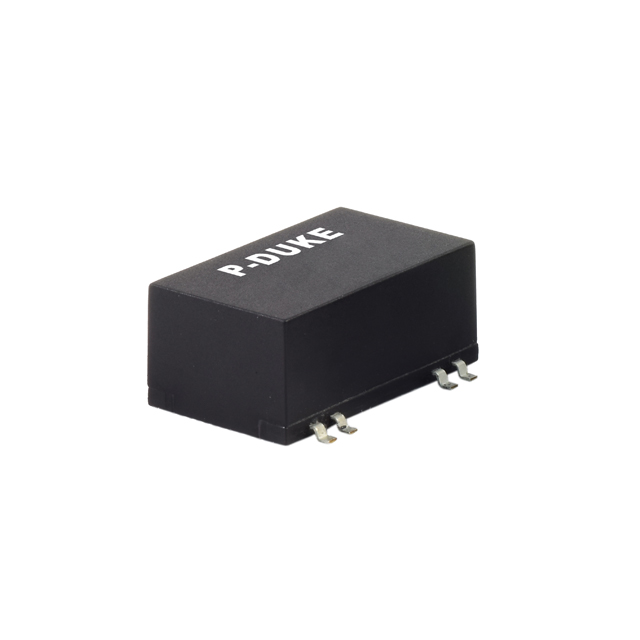

MPS02-24S05

MPS02-24S05 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 5V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MPS02-24S05

• Description：DC DC CONVERTER 5V 2W
• Series：MPS02 (2W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：400mA
• Power (Watts)：2 W
• Voltage - Isolation：5 kV
• Applications：ITE (Commercial), Medical
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：79%
• Mounting Type：Surface Mount
• Package / Case：16-SMD Module, 7 Leads
• Size / Dimension：0.96" L x 0.57" W x 0.41" H (24.3mm x 14.4mm x 10.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, CE, cURus
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MPS02-24S05
