MPVZ5010GW6U

Pressure Sensors Transducers Overview

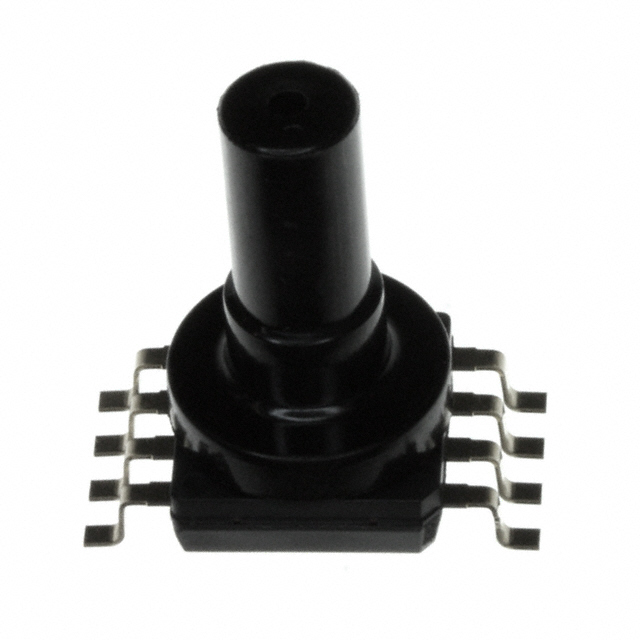

The MPVZ5010GW6U is an integrated silicon pressure sensor manufactured by NXP USA Inc., designed for gauge pressure measurement ranging from vacuum to 100 kPa. It features a calibrated analog voltage output spanning 0.2V to 4.7V, powered by a supply voltage of 4.75V to 5.25V. The device incorporates on-chip signal conditioning and temperature compensation, ensuring accuracy across an operating temperature range of -40°C to 125°C. Housed in an 8-SOP package (SOT1691-2), it offers high sensitivity with a typical output of 450 mV/V.

Pressure Sensors Transducers Feature Summary

• Integrated silicon pressure sensor with built-in signal conditioning
• Temperature compensated design maintains accuracy across wide thermal ranges
• Calibrated analog voltage output for direct interface compatibility

Pressure Sensors Transducers Applications

• Automotive tire pressure monitoring systems
• Industrial process control instrumentation
• HVAC system pressure monitoring

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffix and package variant against the latest NXP datasheet to ensure compatibility with your PCB footprint and electrical requirements. Confirm RoHS compliance status and environmental certifications prior to procurement. Check for any obsolescence notices or lifecycle changes directly from the manufacturer to avoid supply chain disruptions during production.

Pressure Sensors Transducers Selection Notes

Select this component when a gauge pressure sensor with integrated temperature compensation and signal conditioning is required. The 8-SOP package suits board-mount applications where space is constrained. Ensure the input voltage range matches your system's power supply and that the analog output voltage swing aligns with your microcontroller or ADC input limits for optimal resolution.

Pressure Sensors Transducers Part Context

This part belongs to the MPX/MPVZ series of integrated pressure sensors from NXP. These devices combine piezoresistive sensing elements with ASICs for signal processing. The MPVZ5010GW6U specifically targets gauge pressure applications, distinguishing itself from differential or absolute pressure variants within the broader family through its reference port configuration and calibration profile.

Pressure Sensors Transducers Replacement Considerations

Cross-reference with MPVZ5010GW7U for alternative packaging options. Verify pinout compatibility and electrical parameter equivalence before substitution. Consult official NXP documentation for detailed mechanical and electrical differences between package variants.
