MPX2202DP

Pressure Sensors Transducers Overview

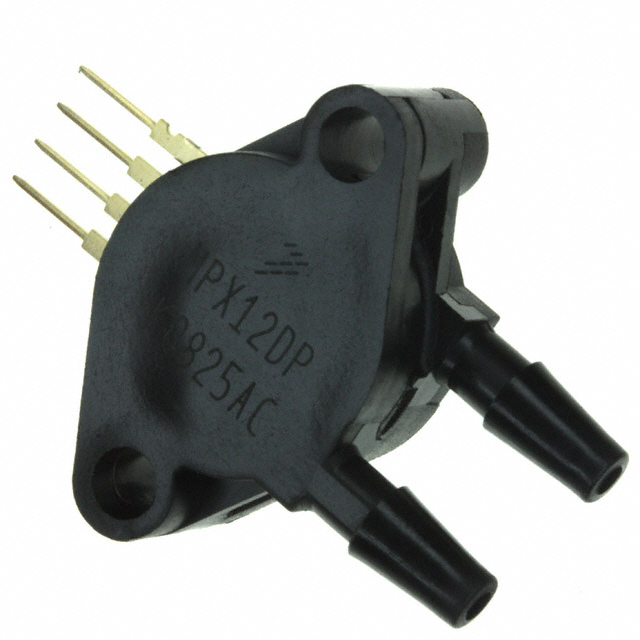

The MPX2202DP is a temperature-compensated differential pressure sensor from the MPX2202 series, manufactured by NXP Semiconductors. It features a silicon piezoresistive sensing element with a Wheatstone bridge output. The device operates within a supply voltage range of 10V to 16V and provides an output signal of 0mV to 40mV at 10V. It supports a working pressure of 29.01PSI (200kPa) and can withstand a maximum pressure of 58.02PSI (400kPa). The component is housed in a SENSOR4F package with dual barbed ports for connection.

Pressure Sensors Transducers Feature Summary

• Temperature compensated for accurate measurement across operating ranges
• Piezoresistive silicon sensing element providing linear voltage output
• Dual port design with barbed connections for tubing attachment

Pressure Sensors Transducers Applications

• Flow measurement systems
• Leak detection applications
• Medical equipment pressure monitoring

Pressure Sensors Transducers Procurement Notes

Verify the specific manufacturer source, as the MPX2202 series was originally developed by Motorola and later transferred to Freescale and then NXP. Confirm RoHS compliance status and check for active stock availability, as older variants may be subject to discontinuation or obsolescence notices depending on the current production line status.

Pressure Sensors Transducers Selection Notes

Select this model for applications requiring differential pressure measurement up to 200kPa. Ensure the system design accommodates the 10V to 16V supply requirement and the resulting mV-level output signal. The SENSOR4F package and barbed ports are suitable for direct tubing integration without additional adapters.

Pressure Sensors Transducers Part Context

The MPX2202DP belongs to the MPX2202 series of piezoresistive pressure sensors. This series includes both absolute (MPXM) and differential (MPXV/MPX) variants. The DP suffix typically denotes the differential pressure type with specific porting configurations, distinguishing it from the absolute pressure MPXM2202A variant.

Pressure Sensors Transducers Replacement Considerations

Direct replacements include other members of the MPX2202 series such as MPXV2202DPT1 for surface mount alternatives. Verify pinout compatibility and package dimensions when substituting with similar differential pressure sensors from the same family.
