MPXV2202DPT1

Pressure Sensors Transducers Overview

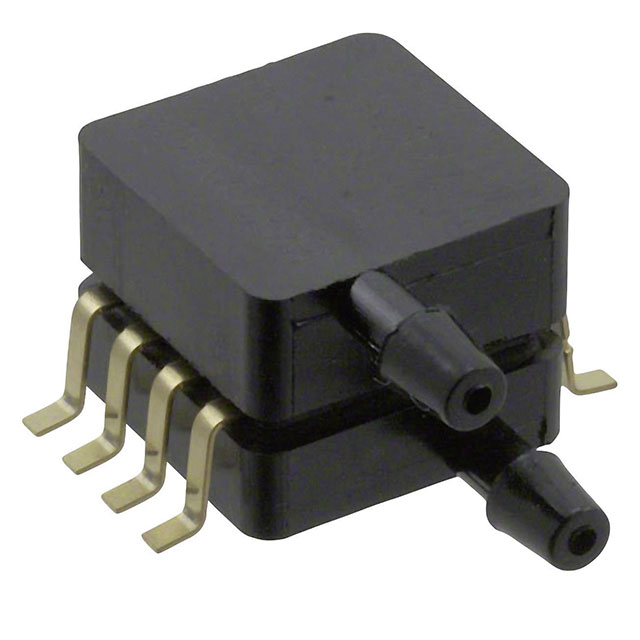

The MPXV2202DPT1 is a temperature-compensated differential pressure sensor from the MPX2202 series, manufactured by NXP USA Inc. It features an on-chip silicon piezoresistive element with a Wheatstone bridge output. The device measures differential pressures up to 29.01 PSI (200 kPa) and has a maximum non-destructive pressure rating of 58.02 PSI (400 kPa). It provides an analog output ranging from 0 mV to 40 mV at a 10 V supply. The sensor operates within a temperature range of -40°C to 125°C and is housed in an 8-BSOP surface-mount package with dual ports.

Pressure Sensors Transducers Feature Summary

• On-chip temperature compensation ensures high accuracy and linearity across the operating temperature range.
• Integrated silicon piezoresistive sensing element provides a robust Wheatstone bridge output configuration.
• Surface-mount design facilitates automated assembly and integration into compact electronic systems.

Pressure Sensors Transducers Applications

• Board-mounted industrial pressure monitoring
• HVAC system differential pressure measurement
• Medical device pneumatic control

Pressure Sensors Transducers Procurement Notes

Verify that the specific part number matches the required pressure range and package type. Confirm RoHS compliance status and check for any specific handling requirements related to the surface-mount package. Ensure the supplier documentation aligns with the manufacturer's official specifications for the MPX2202 series.

Pressure Sensors Transducers Selection Notes

Select this component when a differential pressure sensor with integrated temperature compensation is required. The 200 kPa range suits applications needing moderate pressure measurement. The 8-BSOP package is suitable for surface-mount technology processes. Consider the analog output interface for compatibility with signal conditioning circuits.

Pressure Sensors Transducers Part Context

This component belongs to the MPX2202 series of pressure sensors. It is designed as a complete sensing solution with built-in signal conditioning. The series offers various pressure ranges and package options to meet different application needs while maintaining consistent performance characteristics.

Pressure Sensors Transducers Replacement Considerations

Check for direct substitutes within the MPX2202 series or other NXP pressure sensor lines. Verify pinout compatibility and electrical parameter alignment before substitution. Consult official replacement guides for cross-reference information.
