MPXV5010G6U

Pressure Sensors Transducers Overview

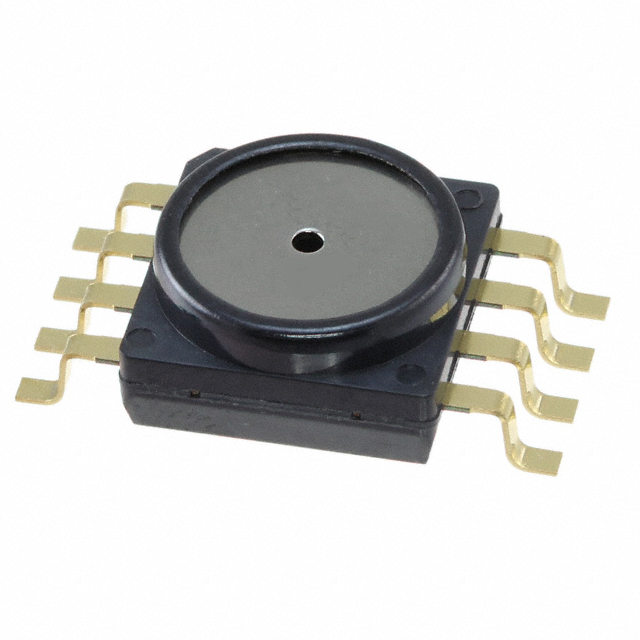

The MPXV5010G6U is a gauge pressure sensor from the MPX5010 series, designed for pneumatic controls and HVAC systems. It features an integrated silicon piezoresistive transducer with on-chip signal conditioning, temperature compensation, and calibration. The device operates within a pressure range of 0 to 10 kPa (1.45 PSI) and provides an analog voltage output proportional to applied pressure. It supports supply voltages between 4.75 V and 5.25 V, with a typical operating current of 5 mA. Accuracy is specified at 5% maximum error over the industrial temperature range of -40°C to +125°C. The component utilizes a surface-mount package with dual axial barbed ports for tubing connection.

Pressure Sensors Transducers Feature Summary

• Integrated silicon piezoresistive technology with on-chip signal conditioning and calibration
• Temperature compensated across the full industrial operating range
• Patented silicon shear stress strain gauge design for durability
• Surface mount package with modified axial ports for industrial tubing

Pressure Sensors Transducers Applications

• HVAC systems
• Respiratory systems
• Hospital beds
• Process control
• Appliance liquid level measurement

Pressure Sensors Transducers Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels due to discontinued status. Confirm RoHS compliance and specific lot traceability requirements before integration. Check for alternative sourcing options as availability may be limited. Ensure storage conditions meet moisture sensitivity level specifications to prevent package degradation prior to assembly.

Pressure Sensors Transducers Selection Notes

Select this component for applications requiring accurate low-pressure gauge measurements in microprocessor-based systems. Consider the 5% accuracy specification and temperature compensation range when designing environmental tolerances. Evaluate the surface-mount footprint and axial port configuration against PCB layout constraints. Verify supply voltage compatibility with the 4.75 V to 5.25 V operational window.

Pressure Sensors Transducers Part Context

This part belongs to the MPX5010 series of monolithic silicon pressure sensors. The series includes both differential and gauge configurations available in surface-mount and through-hole packages. These sensors are designed for applications employing microcontrollers with A/D inputs, combining micromachining techniques with thin-film metallization for high-level analog output signals.

Pressure Sensors Transducers Replacement Considerations

MP3V5010GC6U by STMicroelectronics offers similar gauge pressure sensing capabilities with comparable interface and performance characteristics.
