MPXV7007GC6T1

Pressure Sensors Transducers Overview

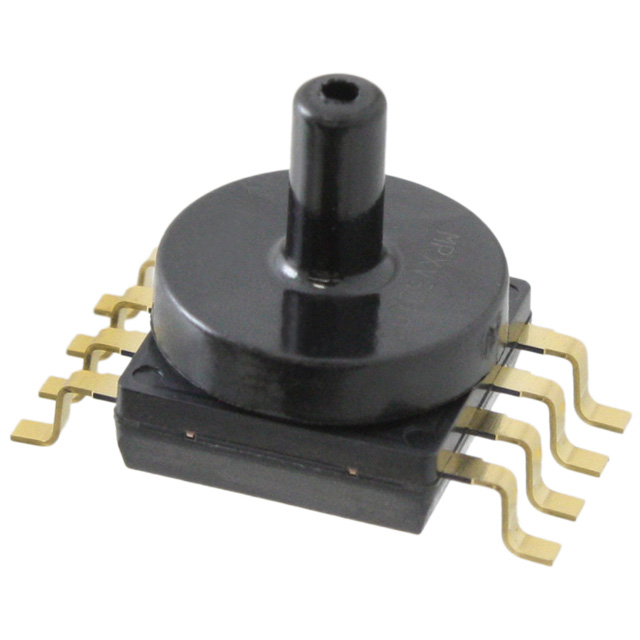

The MPXV7007GC6T1 is a piezoresistive pressure transducer from the MPXV7007 series, designed for surface-mount applications. It features an 8-SOP package with a top port and measures gauge pressure within a range of ±7 kPa (±1.02 PSI). The device operates on a supply voltage between 4.75 V and 5.25 V, drawing a typical current of 7 mA. It provides an analog output signal ranging from 0.5 V to 4.5 V. The sensor maintains an accuracy of ±5% and functions reliably across an operating temperature range from -40°C to +125°C.

Pressure Sensors Transducers Feature Summary

• Monolithic silicon piezoresistive construction for high reliability
• Integrated analog voltage output interface
• Surface-mount SOP-8 package with axial port configuration

Pressure Sensors Transducers Applications

• Industrial process control systems
• HVAC pressure monitoring
• Medical device instrumentation

Pressure Sensors Transducers Procurement Notes

Verify component authenticity through authorized NXP distributors or direct manufacturer channels. Confirm that the specific suffix GC6T1 matches the required tape-and-reel packaging format. Ensure the gauge pressure rating aligns with system requirements before integration. Request official datasheets and material declarations to validate compliance with environmental standards.

Pressure Sensors Transducers Selection Notes

Select this component when a compact surface-mount solution is required for low-pressure differential measurements. The ±7 kPa range suits applications involving slight pressure variations in air or non-corrosive gases. Consider the analog output compatibility with existing microcontroller ADC inputs. Evaluate thermal stability requirements against the specified -40°C to +125°C operational window.

Pressure Sensors Transducers Part Context

This part belongs to the MPXV7007 series of piezoresistive pressure sensors. These devices utilize monolithic silicon technology to provide accurate pressure sensing in a small footprint. The series is engineered for robust performance in demanding environments, offering consistent analog signals proportional to applied pressure changes.

Pressure Sensors Transducers Replacement Considerations

Cross-reference with other MPXV7007 variants for different pressure ranges or package styles. Verify pinout compatibility if substituting with similar SOP-8 pressure sensors. Ensure electrical specifications match the target circuit design.
