MPXV7025DPT1

Pressure Sensors Transducers Overview

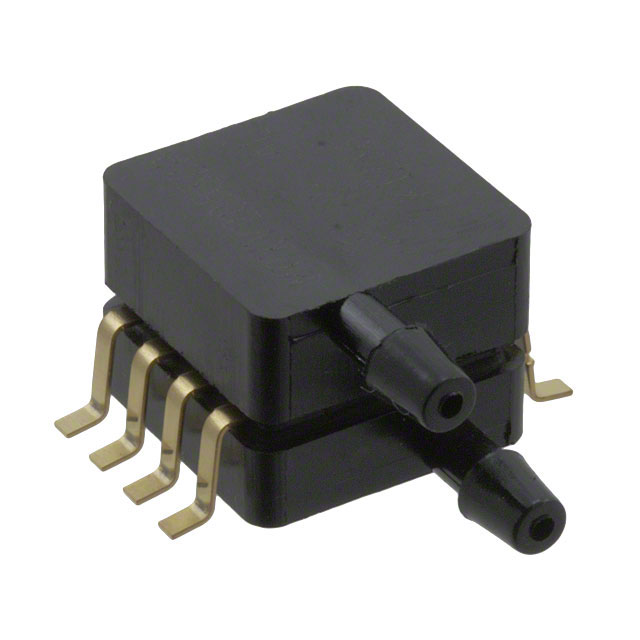

The MPXV7025DPT1 is a differential pressure sensor from the MPXV7025G series, manufactured by NXP Semiconductors. It features an integrated silicon piezoresistive element with signal conditioning circuitry for accurate measurement of gauge pressures up to ±3.63 PSI (±25 kPa). The device provides an analog output via a Wheatstone bridge configuration, operating within a supply voltage range of 10V to 16V and delivering an output signal of 0mV to 40mV at 10V. Designed for robust performance, it operates across a wide temperature range of -40°C to 125°C. The component is housed in an 8-SMD module package, suitable for surface mount applications.

Pressure Sensors Transducers Feature Summary

• Integrated signal conditioning circuitry ensures accurate differential pressure measurement
• Temperature compensated operation for stability across extended industrial ranges
• Analog Wheatstone bridge output facilitates direct interface with readout electronics

Pressure Sensors Transducers Applications

• Industrial process control systems requiring precise pressure monitoring
• HVAC equipment for airflow and filter status detection
• Medical devices utilizing low-range differential pressure sensing

Pressure Sensors Transducers Procurement Notes

This component is officially listed as obsolete and is no longer manufactured by NXP USA Inc. Procurement should focus on identifying verified alternative package types or compatible replacement parts from current production lines. Verify that substitute components meet identical electrical specifications and mechanical footprint requirements before integration into existing designs.

Pressure Sensors Transducers Selection Notes

Select this part only if legacy compatibility is required, as it is discontinued. For new designs, consider current NXP pressure sensors with similar ±25 kPa ranges. Ensure the application supports the 10V-16V supply requirement and 8-SMD package constraints. Confirm thermal management strategies align with the -40°C to 125°C operational limits.

Pressure Sensors Transducers Part Context

The MPXV7025DPT1 belongs to the MPXV7025G series of silicon pressure sensors. This series integrates a diffused silicon diaphragm with ASICs for signal amplification and compensation. These sensors are engineered for high reliability in demanding environments, offering stable performance over time and temperature variations typical in industrial and automotive sectors.

Pressure Sensors Transducers Replacement Considerations

NXP lists alternative package types for this product line. Verify specific cross-reference part numbers directly from NXP documentation to ensure functional equivalence and pin compatibility for retrofitting.
