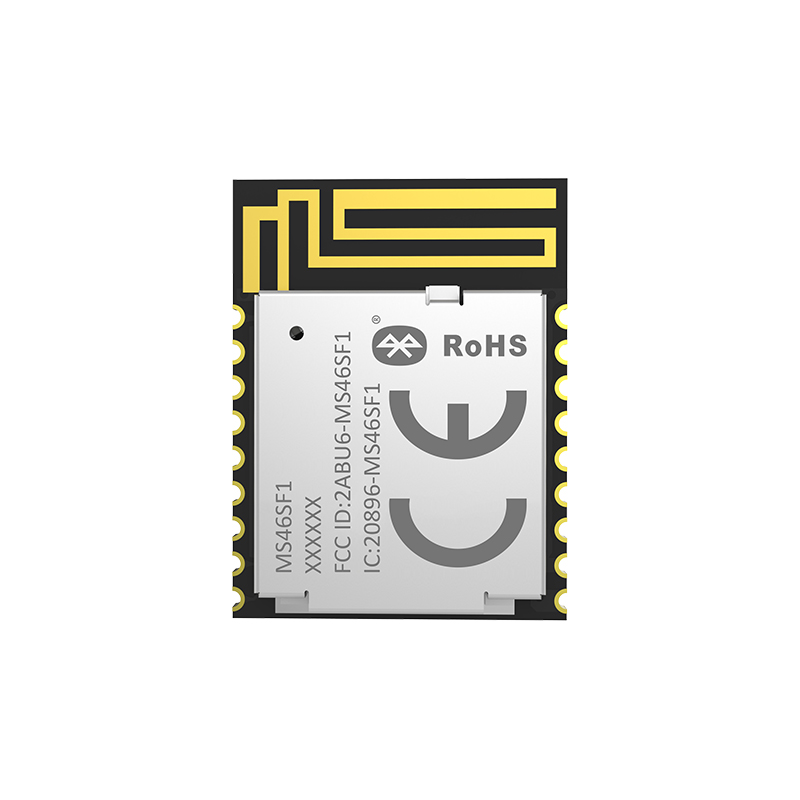

MS46SF1-1Y05AIR

RF Transceiver Modules And Modems Overview

The MS46SF1-1Y05AIR is a Bluetooth v5.3 transceiver module utilizing the nRF52805 SoC with an ARM Cortex-M4 processor. It features 1MB Flash and 512kB RAM, operating on a 1.7V to 5.5V supply. The module supports PCB antennas and offers -104dBm sensitivity. Current consumption is 2.6mA during reception and 3.2mA during transmission. It operates within a temperature range of -40°C to 85°C.

RF Transceiver Modules And Modems Feature Summary

• Integrates nRF52805 SoC for high-performance wireless connectivity
• Supports ultra-low power operation in various states
• Compact design suitable for space-constrained IoT applications

RF Transceiver Modules And Modems Applications

• IoT sensor nodes requiring BLE connectivity
• Smart home devices
• Wearable electronics

RF Transceiver Modules And Modems Procurement Notes

Verify the specific datasheet version and RoHS compliance status before integration, as environmental classifications may vary. Confirm antenna type requirements match the PCB layout constraints. Ensure voltage supply ranges align with the target system's power architecture to prevent operational issues.

RF Transceiver Modules And Modems Selection Notes

Select this module when Bluetooth v5.3 compatibility and low power consumption are critical. The nRF52805 core provides sufficient processing power for complex protocols. Consider the integrated PCB antenna if external connectors are not feasible. Verify memory requirements against application needs.

RF Transceiver Modules And Modems Part Context

This module belongs to MinewSemi's line of compact wireless transceivers designed for IoT ecosystems. It leverages Nordic Semiconductor's silicon for reliable performance. The series targets developers needing certified Bluetooth solutions with minimal external component count.

RF Transceiver Modules And Modems Replacement Considerations

Check for updated revisions from MinewSemi or Nordic Semiconductor. Ensure pinout and firmware compatibility remain consistent when substituting similar modules in existing designs.
