MS50SFA-1Y10AIR

RF Transceiver Modules And Modems Overview

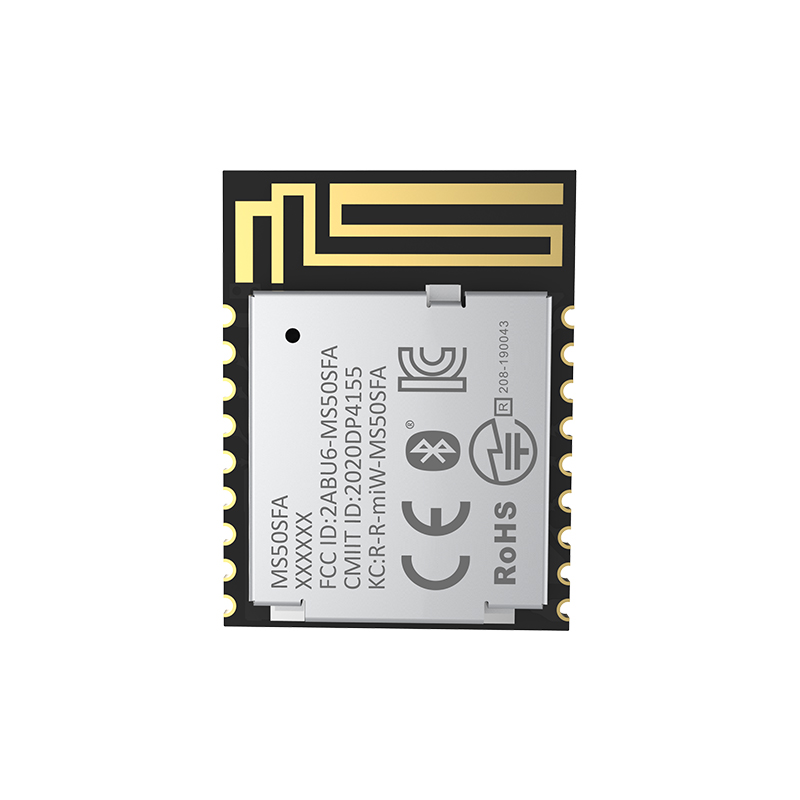

The MS50SFA-1Y10AIR is a compact Surface Mount Device (SMD) Bluetooth Low Energy transceiver module manufactured by MinewSemi. It integrates the Nordic nRF52810 System-on-Chip, featuring an ARM Cortex-M4F core operating at up to 64 MHz. The module supports Bluetooth v5.4 and includes an integrated ceramic patch antenna. Electrical specifications include a supply voltage range of 1.7V to 3.6V, 512kB of Flash memory, and 64kB of RAM. Operating current is specified at 5.4mA during reception and 5.3mA during transmission. The device operates within a temperature range of -40°C to 85°C and offers a receiver sensitivity of -96dBm.

RF Transceiver Modules And Modems Feature Summary

• Integrates the Nordic nRF52810 SoC with an ARM Cortex-M4F processor for efficient low-energy wireless communication.
• Supports Bluetooth v5.4 protocol standards for enhanced connectivity and performance.
• Features a compact form factor with an integrated ceramic patch antenna suitable for space-constrained designs.
• Provides flexible serial GPIO interfaces for easy integration into host systems.

RF Transceiver Modules And Modems Applications

• Wearable health monitoring devices
• Smart home IoT sensors
• Asset tracking tags
• Personal area network peripherals

RF Transceiver Modules And Modems Procurement Notes

Confirm the specific ordering suffix matches the required firmware version and regulatory certifications for your target market. Verify that the surface-mount package dimensions align with your PCB footprint design. Ensure the supply voltage requirements of your system fall within the 1.7V to 3.6V operational range. Check for any specific ESD handling precautions during assembly as per the datasheet guidelines.

RF Transceiver Modules And Modems Selection Notes

Select this module when a small footprint and low power consumption are critical for the application. The nRF52810 chip offers a cost-effective alternative to higher-performance variants while maintaining Bluetooth v5.4 compatibility. Consider the integrated antenna design if board space for external antennas is limited. Evaluate the 512kB Flash capacity against your application's code storage needs.

RF Transceiver Modules And Modems Part Context

This module belongs to the MS50SFA family from MinewSemi, which utilizes Nordic Semiconductor's nRF52 series chips. The family includes variants based on different SoCs, such as the nRF52832 and nRF52810, offering varying levels of memory and processing power. The MS50SFA-1Y10AIR specifically targets applications requiring a balance of size, cost, and modern Bluetooth capabilities.

RF Transceiver Modules And Modems Replacement Considerations

Public confirmed substitute part numbers: None identified in official documentation.

RF Transceiver Modules And Modems FAQ

What is the maximum operating speed of the MCU core?

The ARM Cortex-M4F core runs at up to 64 MHz.

Does the module support Bluetooth 5.4?

Yes, the MS50SFA-1Y10AIR supports the Bluetooth v5.4 standard.
