MS580502BA01-50

Pressure Sensors Transducers Overview

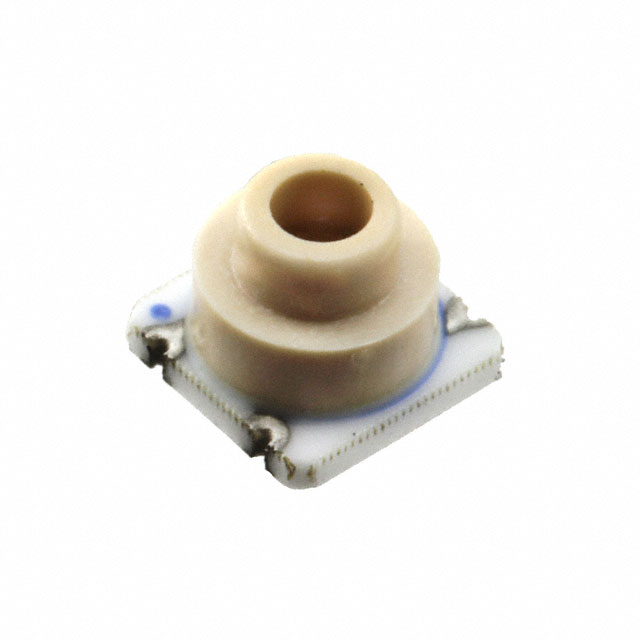

The MS580502BA01-50 is a miniature altimeter module from TE Connectivity Measurement Specialties. It integrates a high-linearity pressure sensor with an internal factory-calibrated coefficient and a low-power 24-bit delta-sigma ADC. The device operates on a supply voltage of 1.8 to 3.6 V and features an I²C interface for digital communication. It provides precise 24-bit digital outputs for both pressure and temperature, enabling optimized current consumption and conversion speed through various operating modes.

Pressure Sensors Transducers Feature Summary

• Integrates a high-linearity pressure sensor with internal factory calibration coefficients
• Includes a low-power 24-bit delta-sigma analog-to-digital converter
• Provides simultaneous digital output for pressure and temperature measurements
• Supports I²C bus interface for direct microcontroller connection

Pressure Sensors Transducers Applications

• Mobile altimeters and depth measurement systems
• Adventure or multi-mode watches
• Bicycle computers and data loggers
• Diving computers

Pressure Sensors Transducers Procurement Notes

Verify the specific part number suffix against official TE Connectivity documentation to confirm exact specifications. Ensure compatibility with system voltage levels within the 1.8 to 3.6 V range. Confirm interface requirements match the I²C protocol supported by the module. Check environmental ratings for intended operating temperatures and pressure ranges before integration.

Pressure Sensors Transducers Selection Notes

Select this module when high resolution and low power consumption are critical for battery-operated devices. It is suitable for applications requiring accurate altitude or depth tracking without external components. Consider its small form factor for space-constrained designs. Verify that the required pressure range aligns with the module's capabilities for the specific application environment.

Pressure Sensors Transducers Part Context

This component belongs to the MS5805 series of miniature altimeter modules designed by MEAS Switzerland, now part of TE Connectivity. These sensors utilize MEMS technology to deliver high stability and low hysteresis. The series is widely used in consumer electronics and outdoor equipment where precision and energy efficiency are paramount.

Pressure Sensors Transducers Replacement Considerations

Consult TE Connectivity official documentation for verified substitute part numbers. Cross-reference specifications such as pressure range, interface type, and package dimensions to ensure functional equivalence. Do not assume interchangeability based solely on series naming conventions.
