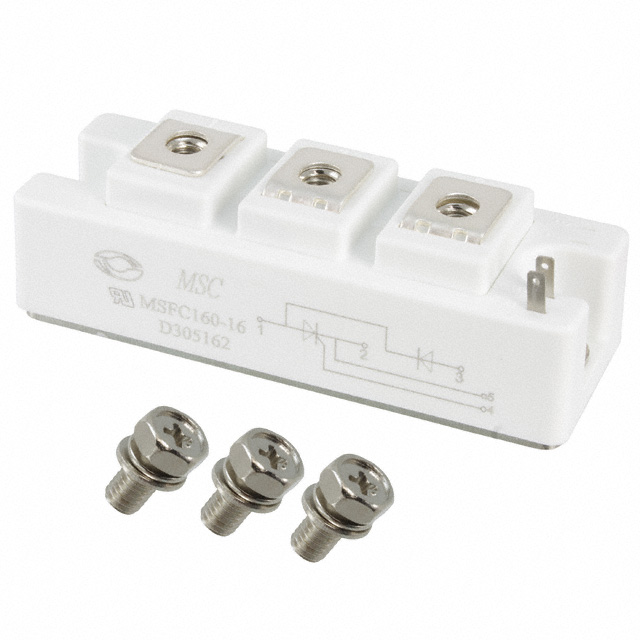

MSFC160-16

MSFC160-16 is listed in the SCRs - Modules range at ChipApex. The manufacturer field lists Microsemi Corporation. Its product description is POWER MOD THYRISTOR/DIODE F2. Review the specifications below when checking this part for your BOM.

SCRs - Modules specifications for MSFC160-16

• Description：POWER MOD THYRISTOR/DIODE F2
• Series：-
• Mfr：Microsemi Corporation
• Package：Bulk
• Structure：Series Connection - SCR/Diode
• Number of SCRs, Diodes：1 SCR, 1 Diode
• Voltage - Off State：1.6 kV
• Current - On State (It (AV)) (Max)：160 A
• Current - On State (It (RMS)) (Max)：-
• Current - Non Rep. Surge 50, 60Hz (Itsm)：5400A @ 50Hz
• Operating Temperature：-40°C ~ 125°C (TJ)
• Mounting Type：Screw Mount
• Package / Case：Module
• Voltage - Gate Trigger (Vgt) (Max)：3 V
• Current - Gate Trigger (Igt) (Max)：150 mA
• Current - Hold (Ih) (Max)：400 mA
• Grade：-
• Qualification：-

SCRs - Modules datasheet and documents for MSFC160-16
