MXT36FI32K768

Crystals Overview

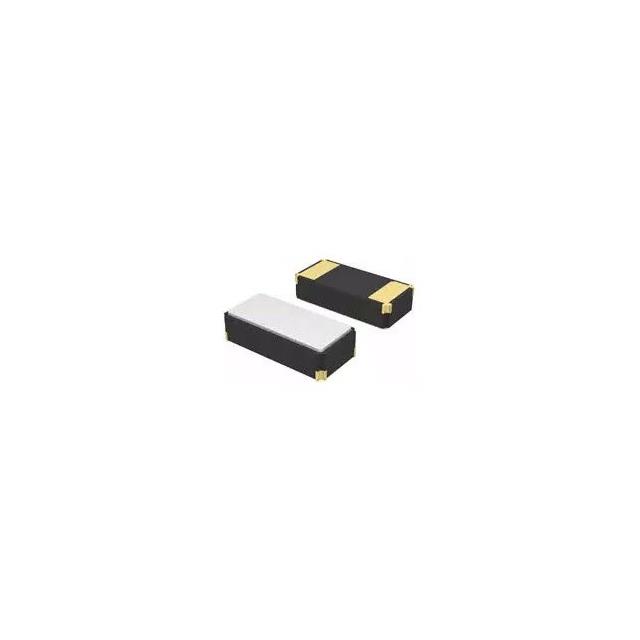

The MXT36FI32K768 is a surface-mount crystal manufactured by Meritek, designed for precise timing applications. It operates at a nominal frequency of 32.768 kHz with a normal temperature frequency tolerance of ±20ppm. The component features a load capacitance of 6pF and an equivalent series resistance (ESR) of 70 kOhms. It utilizes a 2-SMD, No Lead package configuration suitable for automated assembly processes. The device supports an operating temperature range from -40°C to +85°C, ensuring reliability across various environmental conditions.

Crystals Feature Summary

• Provides stable 32.768 kHz timing reference for clock generation circuits
• Utilizes lead-free SMD packaging for compact board integration
• Maintains specified frequency tolerance within industrial temperature ranges

Crystals Applications

• Real-time clock circuits in embedded systems
• Microcontroller system clocks
• Low-power portable electronic devices

Crystals Procurement Notes

Verify the specific package type and pin configuration against the official Meritek datasheet prior to procurement. Confirm that the required frequency tolerance and load capacitance align with the target circuit design specifications. Ensure compliance with RoHS status requirements if applicable to the manufacturing process.

Crystals Selection Notes

Select this component when a standard 32.768 kHz frequency is required for timekeeping or low-speed synchronization. Consider the 6pF load capacitance requirement to ensure proper oscillator circuit stability. Evaluate the ±20ppm tolerance against the system's timing accuracy needs.

Crystals Part Context

This part belongs to Meritek's line of surface-mount crystals intended for general-purpose timing applications. It serves as a fundamental passive component for establishing base frequencies in digital logic circuits. The product represents a standard solution for cost-sensitive designs requiring reliable oscillation.

Crystals Replacement Considerations

Direct substitutes include other 32.768 kHz SMD crystals with matching 6pF load capacitance and similar ESR values. Verify mechanical footprint compatibility before substitution.
