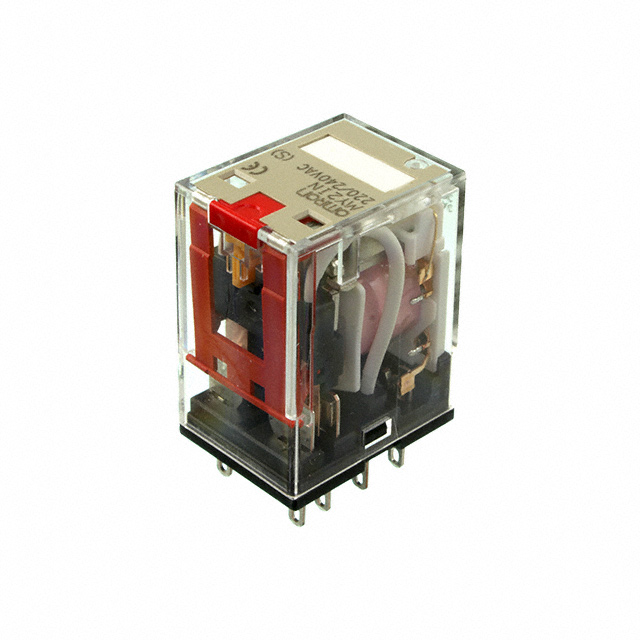

MY2IN AC220/240 (S)

MY2IN AC220/240 (S) is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is RELAY GEN PURPOSE DPDT 5A 240V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for MY2IN AC220/240 (S)

• Description：RELAY GEN PURPOSE DPDT 5A 240V
• Series：MY
• Mfr：Omron Automation and Safety
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：240VAC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：5:00 AM
• Switching Voltage：250VAC, 125VDC - Max
• Load - Max Switching：1250VA, 625W
• Coil Current：12.8 mA
• Coil Type：Non Latching
• Features：Latching Lever, Lighted Indicator, Test Button
• Termination Style：Plug In
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：192 VAC
• Must Release Voltage：72 VAC
• Operating Temperature：-55°C ~ 70°C
• Contact Material：Silver (Ag)
• Approval Agency：CE, CSA, UR, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：20 ms
• Release Time：20 ms
