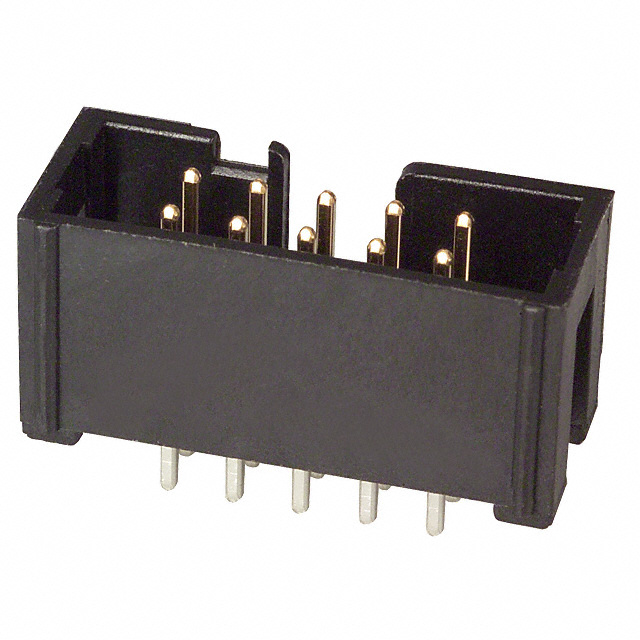

N2510-6003-RB

N2510-6003-RB is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists 3M. Its product description is CONN HEADER VERT 10POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for N2510-6003-RB

• Description：CONN HEADER VERT 10POS 2.54MM
• Series：2500
• Mfr：3M
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：10
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.243" (6.17mm)
• Contact Length - Post：0.155" (3.94mm)
• Overall Contact Length：-
• Insulation Height：0.390" (9.91mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
• Features：Keying Slot
• Operating Temperature：-55°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：1.75A
• Voltage Rating：-

Headers, Male Pins datasheet and documents for N2510-6003-RB
