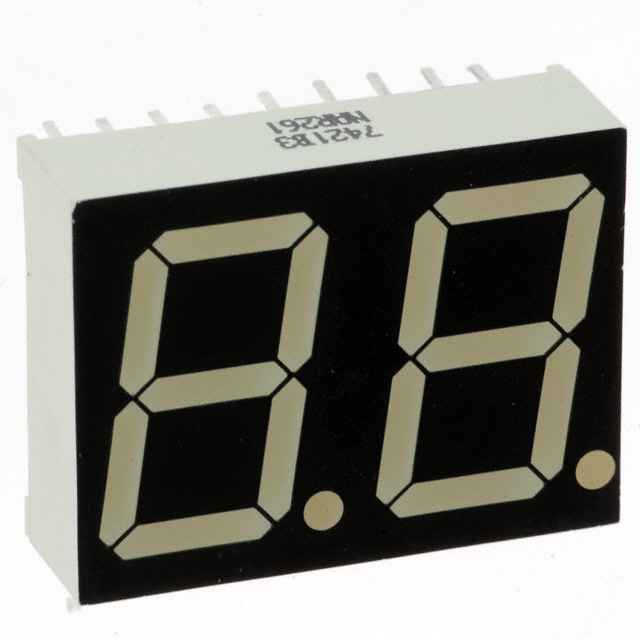

LED Character And Numeric NAR261B product image

NAR261B

Description：DISPLAY 7-SEG 0.6" DBL RED 18DIP
Series：-
Mfr：Stanley Electric Co
Package：Bulk

SKU:0e3351c99005 Category: LED Character and Numeric Brand: Stanley Electric Co

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NAR261B is listed in the LED Character And Numeric range at ChipApex. The manufacturer field lists Stanley Electric Co. Its product description is DISPLAY 7-SEG 0.6" DBL RED 18DIP. Review the specifications below when checking this part for your BOM.

LED Character And Numeric specifications for NAR261B

Description：DISPLAY 7-SEG 0.6" DBL RED 18DIP
Series：-
Mfr：Stanley Electric Co
Package：Bulk
Number of Characters：2
Size / Dimension：0.748" H x 0.992" W x 0.315" D (19.00mm x 25.20mm x 8.00mm)
Digit/Alpha Size：0.60" (15.24mm)
Display Type：7-Segment
Common Pin：Common Anode
Color：Red
Voltage - Forward (Vf) (Typ)：1.7V
Current - Test：20mA
Millicandela Rating：12mcd
Wavelength - Peak：660nm
Power Dissipation (Max)：60mW
Package / Case：18-DIP
Display Format：-

LED Character And Numeric datasheet and documents for NAR261B

NAR261B
