NBPLPNN030PAUNV

Pressure Sensors Transducers Overview

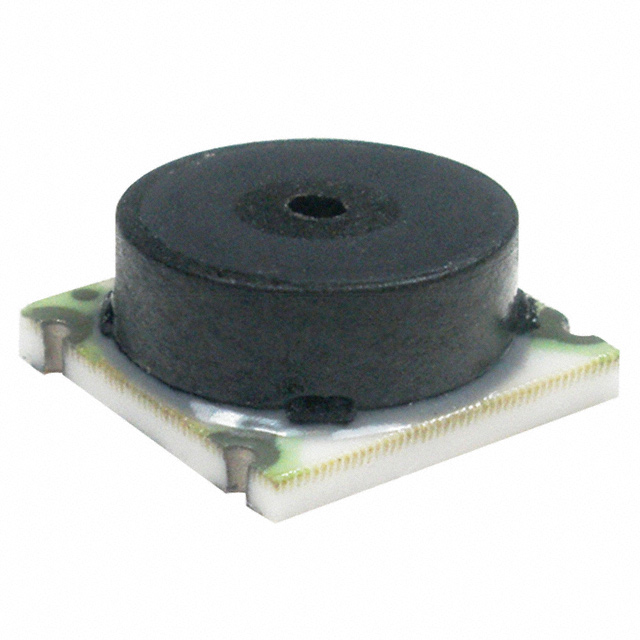

The NBPLPNN030PAUNV is a board-mount pressure sensor from the Honeywell NBP series, designed for uncompensated and unamplified millivolt analog output applications. It features a piezoresistive sensing element with a 30 PSI absolute pressure range and a maximum working pressure of 60 PSI. The device operates within a supply voltage range up to 12 V and delivers a sensitivity of 26 mV/V. It includes an offset specification of 7 mV/V and maintains a maximum accuracy of 0.25%. The sensor is housed in a rectangular surface mount package measuring 11.5 mm in length, 7 mm in width, and 3.84 mm in height, with a hole port type.

Pressure Sensors Transducers Feature Summary

• Uncompensated and unamplified millivolt analog output for basic pressure measurement
• Piezoresistive sensing technology ensuring reliable performance
• Surface mount rectangular package design for direct board integration
• Hole port configuration suitable for specific fluid or gas connections

Pressure Sensors Transducers Applications

• Basic board mount pressure monitoring systems
• Industrial process control requiring uncompensated signals
• HVAC equipment pressure sensing
• Medical device pneumatic monitoring

Pressure Sensors Transducers Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the received part matches the exact ordering code NBPLPNN030PAUNV, as suffix variations may indicate different electrical characteristics or packaging. Check for physical damage to the surface mount leads and ensure proper handling procedures are followed to prevent electrostatic discharge during installation.

Pressure Sensors Transducers Selection Notes

Select this component when an uncompensated, unamplified millivolt output is required rather than a conditioned signal. It is suitable for designs where external circuitry will handle temperature compensation and signal amplification. Consider the 26 mV/V sensitivity and 7 mV/V offset when designing the readout electronics. Ensure the operating temperature range of -40°C to 125°C aligns with the application environment.

Pressure Sensors Transducers Part Context

This sensor belongs to the NBP series of basic pressure sensors from Honeywell Sensing and Productivity Solutions. The series provides uncompensated and unamplified options for various pressure ranges. The NBPLPNN030PAUNV specifically addresses the 30 PSI absolute pressure requirement with a surface mount form factor, distinguishing it from through-hole or amplified variants within the broader product family.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing PCB layouts and signal conditioning circuits if considering alternative models from the same or other manufacturers.
