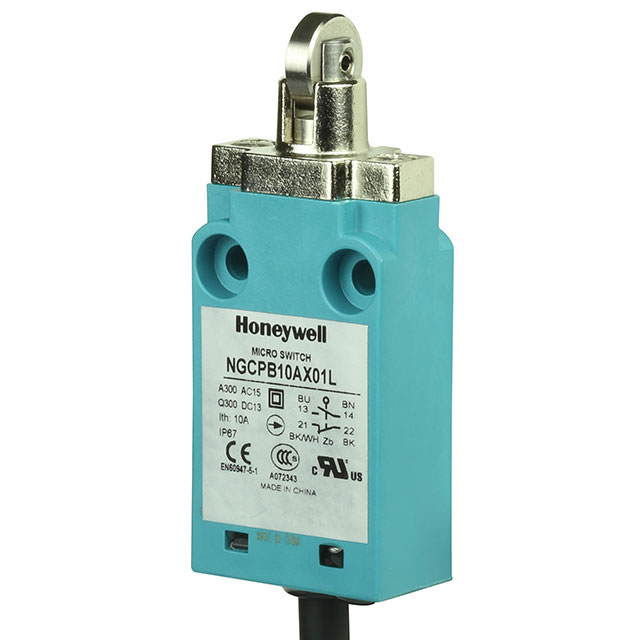

Limit Switches NGCPB10AX01L product image

NGCPB10AX01L

$42.65

Description：SWITCH SNAP ACTION DPST 6A 120V
Series：NGC
Mfr：Honeywell Sensing and Productivity Solutions
Package：Bulk,Bulk

SKU:d7a7eff89573 Category: Limit Switches Brand: Honeywell Sensing and Productivity Solutions

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NGCPB10AX01L is listed in the Limit Switches range at ChipApex. The manufacturer field lists Honeywell Sensing and Productivity Solutions. Its product description is SWITCH SNAP ACTION DPST 6A 120V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for NGCPB10AX01L

Description：SWITCH SNAP ACTION DPST 6A 120V
Series：NGC
Mfr：Honeywell Sensing and Productivity Solutions
Package：Bulk,Bulk
Circuit：DPST-NO/NC
Switch Function：On-Mom, Off-Mom
Current Rating (Amps)：6A (AC), 550mA (DC)
Voltage Rating - AC：120 V
Actuator Type：Cross Roller Plunger
Mounting Type：Chassis Mount
Termination Style：Cable Leads
Ingress Protection：IP67 - Dust Tight, Waterproof
Features：-
Operating Force：1122gf
Release Force：306gf
Operating Position：0.083" (2.1mm)
Pretravel：0.083" (2.1mm)
Differential Travel：0.047" (1.2mm)
Overtravel：0.193" (4.9mm)
Operating Temperature：-25°C ~ 75°C
Voltage Rating - DC：125 V

Limit Switches datasheet and documents for NGCPB10AX01L

NGCPB10AX01L
