NSHS05A065

$0.55

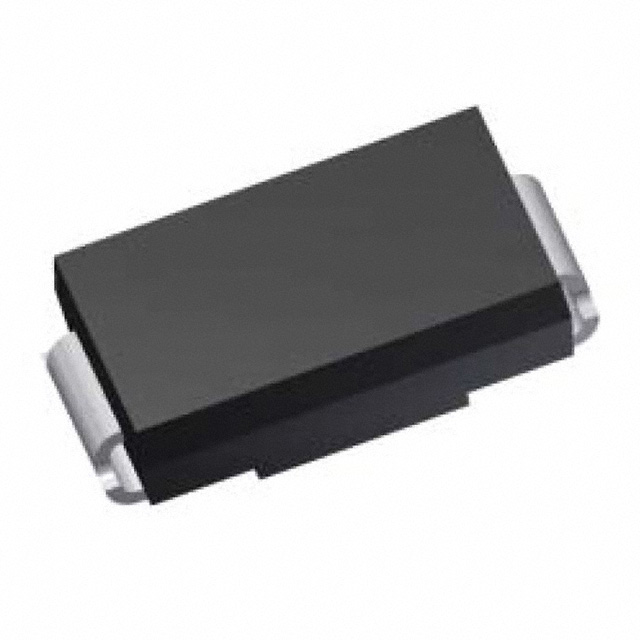

Description：DIODE SCHOTTKY 65V 5A NSMC
Series：-
Mfr：KYOCERA AVX
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:405e34f30bfd Category: Single Diodes Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NSHS05A065 is listed in the Single Diodes range at ChipApex. The manufacturer field lists KYOCERA AVX. Its product description is DIODE SCHOTTKY 65V 5A NSMC. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for NSHS05A065

Description：DIODE SCHOTTKY 65V 5A NSMC
Series：-
Mfr：KYOCERA AVX
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：65 V
Current - Average Rectified (Io)：5A
Voltage - Forward (Vf) (Max) @ If：640 mV @ 5 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：100 µA @ 65 V
Capacitance @ Vr, F：-
Mounting Type：Surface Mount
Package / Case：DO-214AB, SMC
Supplier Device Package：nSMC
Operating Temperature - Junction：-40°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for NSHS05A065

NSHS05A065

Single Diodes Overview

The NSHS05A065 is a general-purpose switching diode manufactured by KYOCERA AVX. It features a maximum repetitive peak reverse voltage of 65 V and an average forward rectified current rating of 5 A. The device utilizes the nSMC surface-mount package, designed for high-speed switching applications. It operates within a junction temperature range up to +150 °C and supports a maximum operating temperature of +150 °C. The component is RoHS compliant and classified under ECCN EAR99.

Single Diodes Feature Summary

High surge current capability suitable for power switching environments
Surface-mount nSMC package optimized for automated assembly
Low forward voltage drop characteristics for efficiency

Single Diodes Applications

General purpose rectification in power supplies
Freewheeling diodes in motor control circuits
Clamping and protection in switching regulators

Single Diodes Procurement Notes

Verify the specific suffix codes against the official datasheet to ensure correct voltage and current ratings. Confirm RoHS compliance status with the manufacturer as regulatory requirements may vary by region. Check for lead time variations due to supply chain constraints. Ensure storage conditions meet moisture sensitivity level requirements before soldering.

Single Diodes Selection Notes

Select this component when a 65 V reverse voltage rating and 5 A continuous current are required in a compact surface-mount form factor. Consider the nSMC package dimensions for PCB layout compatibility. Evaluate thermal management needs given the +150 °C operating limit. Compare forward voltage specifications against alternative diodes for efficiency optimization in low-voltage applications.

Single Diodes Part Context

KYOCERA AVX produces a broad portfolio of electronic components including capacitors, crystal devices, and connectors. The NSHS05A065 belongs to their diode product line, specifically targeting general-purpose and power switching markets. This component complements their discrete semiconductor offerings alongside MLCCs and RF solutions.
