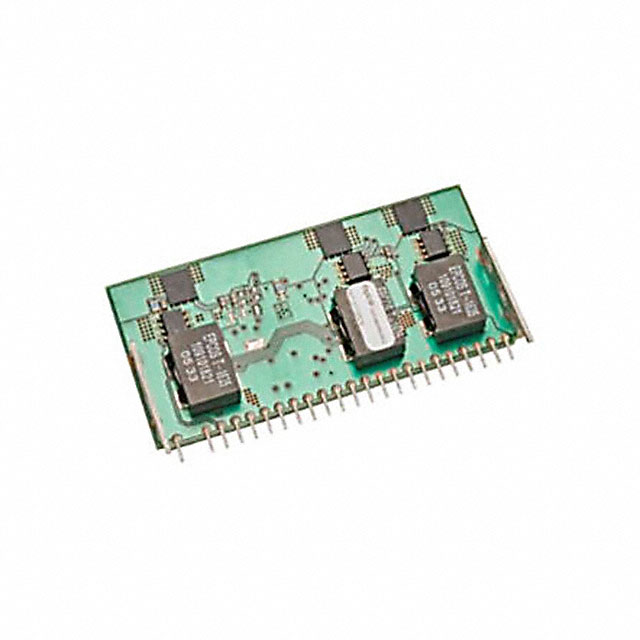

NSR060A0X43Z

NSR060A0X43Z is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 0.6-5V 300W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for NSR060A0X43Z

• Description：DC DC CONVERTER 0.6-5V 300W
• Series：Naos Raptor
• Mfr：OmniOn Power™
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：5V
• Voltage - Input (Max)：13.8V
• Voltage - Output 1：0.6 ~ 5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：60A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：0°C ~ 70°C
• Efficiency：93.50%
• Mounting Type：Through Hole
• Package / Case：10-SIP Module
• Size / Dimension：2.58" L x 0.46" W x 1.25" H (65.5mm x 11.6mm x 31.8mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-
