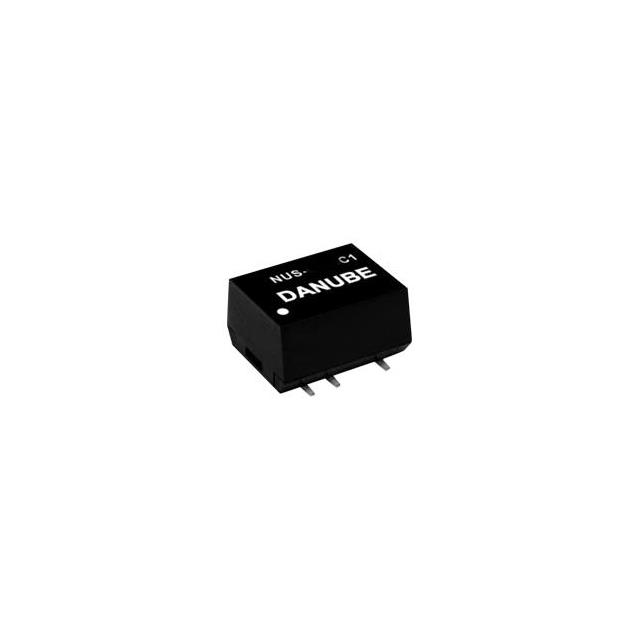

NUS-1215C1

NUS-1215C1 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Diwell Electronics. Its product description is DC DC CONVERTER 15V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for NUS-1215C1

• Description：DC DC CONVERTER 15V 1W
• Series：NU-C1 (1W)
• Mfr：Diwell Electronics
• Package：Strip
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：67mA
• Power (Watts)：1 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 100°C
• Efficiency：82%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module, 5 Leads
• Size / Dimension：0.51" L x 0.43" W x 0.28" H (12.9mm x 10.9mm x 7.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for NUS-1215C1
