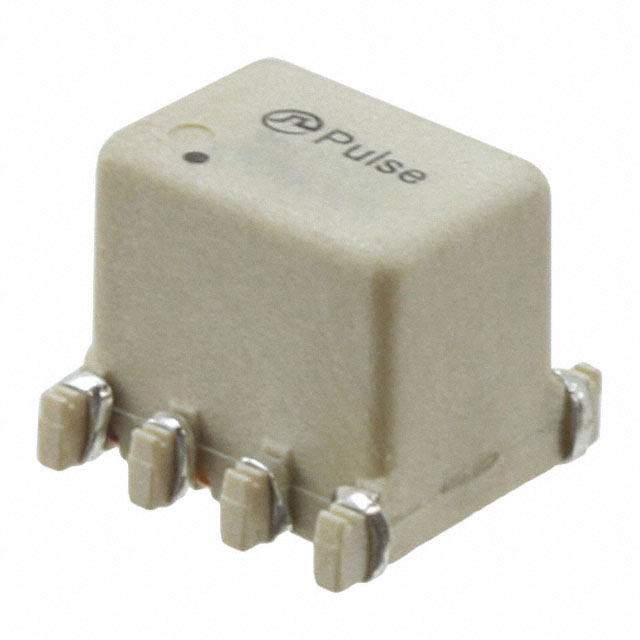

PA2742NL

$1.42

Description：CMC 1A 2LN SMD
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:beeb8091f17d Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PA2742NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 1A 2LN SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PA2742NL

Description：CMC 1A 2LN SMD
Series：-
Mfr：Pulse Electronics
Package：Tube
Filter Type：-
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：92mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 130°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.360" L x 0.350" W (9.14mm x 8.89mm)
Height (Max)：0.310" (7.87mm)
Package / Case：Vertical, 8 Flat Lead
Inductance @ Frequency：-
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PA2742NL

PA2742NL

Common Mode Chokes Overview

The PA2742NL is a surface-mount common mode choke manufactured by Pulse Electronics. It features an inductance of 397 µH and supports a maximum DC current of 1 A. The component has a maximum DC resistance of 92 mΩ and an impedance of 1.4 kΩ at 100 MHz. Its self-resonant frequency is 2.5 MHz. The device operates within a temperature range of -40°C to +125°C. Physical dimensions are 9.1 mm x 8.9 mm x 7.9 mm.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for two-line circuits via surface mount technology.
Utilizes a toroidal core design for efficient magnetic field containment.
Engineered for high reliability with RoHS compliance.

Common Mode Chokes Applications

Signal line filtering in electronic equipment
Noise suppression in data transmission interfaces
EMI reduction in power supply input stages

Common Mode Chokes Procurement Notes

Verify the specific datasheet revision, as Pulse Electronics issues Product Change Notifications (PCNs) that may alter physical or electrical characteristics. Confirm package orientation and pinout compatibility during integration. Ensure storage conditions adhere to moisture sensitivity level requirements before reflow soldering. Cross-reference manufacturer part numbers with distributor codes to avoid sourcing errors.

Common Mode Chokes Selection Notes

Select this component when a 397 µH inductance and 1 A current rating are required for common mode noise attenuation. Compare the 92 mΩ DCR against system loss budgets. Evaluate the 9.1 mm x 8.9 mm footprint against PCB space constraints. Consider the 125°C operating limit for thermal management in enclosed environments.

Common Mode Chokes Part Context

The PA2742NL belongs to the Pulse Electronics SMT Common Mode Chokes series, which offers various package sizes and current ratings from 1 A to 20 A. This specific model is categorized under High Shasta packages, distinguishing it from Low Shasta variants like the PA2741NL. The series targets applications requiring robust EMI filtering in compact surface-mount designs.

Common Mode Chokes Replacement Considerations

Direct substitutes include other 397 µH, 1 A common mode chokes with compatible footprints. Verify inductance tolerance, current saturation levels, and impedance curves match original specifications. Check for equivalent RoHS compliance and operating temperature ranges before substitution.
